安卓aosp 16新特性分屏收藏保存功能AppPairIcon剖析
在这里插入图片描述 更多安卓framework相关干货详细课表： Android Framework开发rom实战合集课表/车载车机手机高级系统开发工程必会技能 重大消息：车载AAOS系统实现三分屏二分屏课程实战专题 课程优惠购买成为vip学员进入vip群，积极讨论各种行业难点痛点疑难问题，请联系马哥微信
背景：

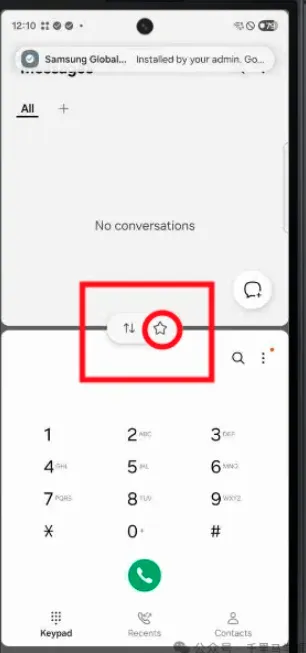

前面一篇blog仿oppo三星samsung手机分屏收藏代码实现
有给大家展示分屏收藏功能相关的实现详细步骤等，最后也实行了这种分屏收藏demo，这些都是自己在aosp14版本实现的。

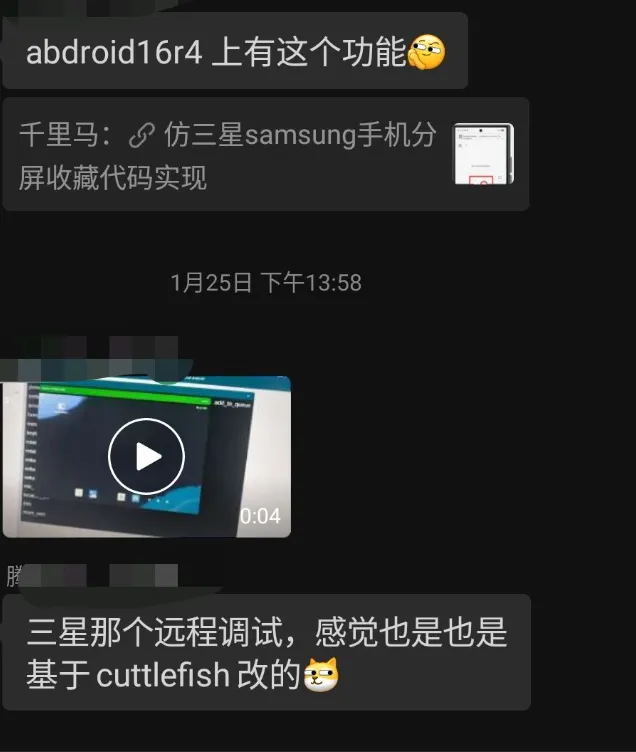

不过在文章发布后，vip学员朋友反馈发现在aosp16版本上，安卓已经自带实现了这个分屏收藏的功能，所以本文将带大家以前来探索google官方是如何实现这个分屏收藏功能，对这块功能的源码进行相关的剖析。
在这里感谢相关学员朋友提供反馈，我们又学到安卓的新知识。
功能展示：
先打开2个task，而且操作进入分屏，在分屏的画面下点击最近任务进入分屏，可以看到分屏的task卡片。

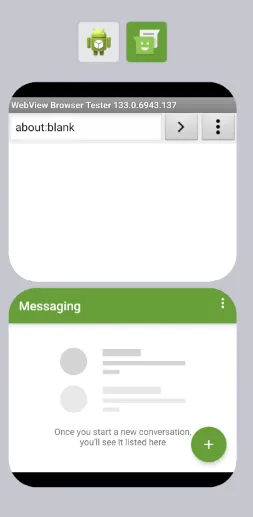

在安卓16版本上在分屏情况下，再进入最近任务，可以看到这时候有分屏的两个task的卡片，点击双图标

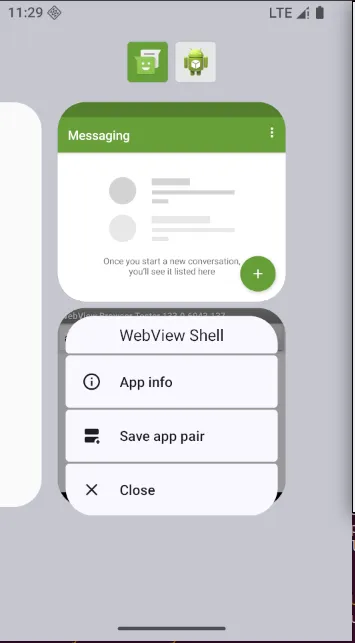

点击后会出现如下弹框，发现有一个Save app pair
点击这个“Save app pair”按钮，其实字面意思就可以理解这个按钮就是保存这对app的task卡片图标，点击后桌面出现多了一个刚才分屏的两个app图标的app：
点击后直接可以进入分屏。
源码剖析：
创建AppPairIcon部分剖析
以“Save app pair”按钮为切入点分析
packages/apps/Launcher3/quickstep/src/com/android/quickstep/TaskShortcutFactory.java
@Override
publicvoidonClick(View view){
dismissTaskMenuView();
//核心就是调用了AppPairsController的saveAppPair方法
((RecentsView) mTarget.getOverviewPanel())
.getSplitSelectController().getAppPairsController().saveAppPair(mTaskView);
}
下面重点看看AppPairsController的saveAppPair方法部分 saveAppPair方法剖析
/**
* Creates a new app pair ItemInfo and adds it to the workspace.
* <br>
* We create WorkspaceItemInfos to save onto the app pair in the following way:
* <br> 1. We verify that the ComponentKey from our Recents tile corresponds to a real
* launchable app in the app store.
* <br> 2. If it doesn't, we search for the underlying launchable app via package name, and use
* that instead.
* <br> 3. If that fails, we re-use the existing WorkspaceItemInfo by cloning it and replacing
* its intent with one from PackageManager.
* <br> 4. If everything fails, we just use the WorkspaceItemInfo as is, with its existing
* intent. This is not preferred, but will still work in most cases (notably it will not work
* well on trampoline apps).
*/
publicvoidsaveAppPair(GroupedTaskView gtv){
//参数类型GroupedTaskView中包含了分屏两个Task的相关信息
//通过GroupedTaskView获取TaskViewItemInfo和WorkspaceItemInfo信息
List<TaskViewItemInfo> recentsInfos =
gtv.getTaskContainers().stream().map(TaskContainer::getItemInfo).toList();
//注意这里resolveAppPairWorkspaceInfo是一个匹配方法，核心就是匹配componentName
List<WorkspaceItemInfo> apps =
recentsInfos.stream().map(this::resolveAppPairWorkspaceInfo).toList();
for (int i = 0; i < apps.size(); i++) {
apps.get(i).rank = encodeRank(getIndex(i), snapPosition);
}
//根据两个task对应的WorkspaceItemInfo信息创建AppPairInfo对象
AppPairInfo newAppPair = new AppPairInfo(apps);
IconCache iconCache = LauncherAppState.getInstance(mContext.asContext()).getIconCache();
MODEL_EXECUTOR.execute(() -> {
//根据newAppPair创建对应的桌面分屏两个小图标
newAppPair.getAppContents().forEach(member -> {
member.title = "";
member.bitmap = iconCache.getDefaultIcon(newAppPair.user);
iconCache.getTitleAndIcon(member, member.getMatchingLookupFlag());
});
MAIN_EXECUTOR.execute(() -> {
LauncherAccessibilityDelegate delegate = QuickstepLauncher.getLauncher(
mContext.asContext()).getAccessibilityDelegate();
if (delegate != null) {
//调用addToWorkspace方法添加newAppPair信息到桌面
delegate.addToWorkspace(newAppPair, true, (success) -> {
});
}
});
});
}
这saveAppPair方法里面核心步骤有以下几个：
1、参数GroupedTaskView转换成TaskViewItemInfo信息
2、TaskViewItemInfo信息转换WorkspaceItemInfo信息
3、使用WorkspaceItemInfo构造AppPairInfo信息
4、根据AppPairInfo创建对应的桌面图标Icon
5、调用addToWorkspace把这个AppPairInfo对应的Icon添加到桌面UI，及保存相关数据信息
addToWorkspace这块就不展开了，熟悉桌面同学都懂这个。
点击AppPairIcon部分剖析
packages/apps/Launcher3/src/com/android/launcher3/touch/ItemClickHandler.java
privatestaticvoidonClick(View v){
Object tag = v.getTag();
if (tag instanceof WorkspaceItemInfo) {
onClickAppShortcut(v, (WorkspaceItemInfo) tag, launcher);
} elseif (tag instanceof FolderInfo) {
onClickFolderIcon(v);
} elseif (tag instanceof AppPairInfo) {//针对AppPairInfo类型的桌面图标调用onClickAppPairIcon方法
onClickAppPairIcon(v);
}
看看onClickAppPairIcon方法：
privatestaticvoidonClickAppPairIcon(View v){
// Either the app pair is not disabled, or it is a disabled state that can be handled by
// framework directly (e.g. one app is paused), so go ahead and launch.
launcher.launchAppPair(icon);//核心就是调用launchAppPair
}
这里再来看看 launcher.launchAppPair方法，在QuickstepLauncher中： packages/apps/Launcher3/quickstep/src/com/android/launcher3/uioverrides/QuickstepLauncher.java
/**
* Launches two apps as an app pair.
*/
publicvoidlaunchAppPair(AppPairIcon appPairIcon){
// Potentially show the Taskbar education once the app pair launch finishes
//可以看到最后调用到了SplitSelectStateController的launchAppPair方法
mSplitSelectStateController.getAppPairsController().launchAppPair(appPairIcon,
CUJ_LAUNCHER_LAUNCH_APP_PAIR_FROM_WORKSPACE,
(success) -> {
if (success && mTaskbarUIController != null) {
mTaskbarUIController.showEduOnAppLaunch();
}
});
}
下面看看launchAppPair具体实现 packages/apps/Launcher3/quickstep/src/com/android/quickstep/util/SplitSelectStateController.java
/**
* Launches an app pair by searching the RecentsModel for running instances of each app, and
* staging either those running instances or launching the apps as new Intents.
*
* @param cuj Should be an integer from {@link Cuj} or -1 if no CUJ needs to be logged for jank
* monitoring
* @param callback Called after the app pair launch finishes animating, or null if no method is
* to be called
*/
publicvoidlaunchAppPair(AppPairIcon appPairIcon, int cuj,
@Nullable Consumer<Boolean> callback){
//核心调用findLastActiveTasksAndRunCallback来寻找当前活跃的task
mSplitSelectStateController.findLastActiveTasksAndRunCallback(
Arrays.asList(app1Key, app2Key),
false/* findExactPairMatch */,
foundTasks -> {
//如果寻找到对应的活跃task，则被放到foundTasks集合中
@Nullable Task foundTask1 = foundTasks[0];//访问集合中的task
Intent task1Intent;
int task1Id;
if (foundTask1 != null) {//如果找到task，则使用taks既可以
task1Id = foundTask1.key.id;
task1Intent = null;
} else {//如果没找到task，那么task1Id就为INVALID_TASK_ID
task1Id = INVALID_TASK_ID;
task1Intent = app1.intent;
}
//调用setInitialTaskSelect接口设置第一个要启动task相关变量
mSplitSelectStateController.setInitialTaskSelect(task1Intent,
AppPairsController.convertRankToStagePosition(app1.rank),
app1,
LAUNCHER_APP_PAIR_LAUNCH,
task1Id);
@Nullable Task foundTask2 = foundTasks[1];
//下面也是判断task2的情况，来设置secondTask的情况
if (foundTask2 != null) {
mSplitSelectStateController.setSecondTask(foundTask2, app2);
} else {
mSplitSelectStateController.setSecondTask(
app2.intent, app2.user, app2);
}
mSplitSelectStateController.setLaunchingIconView(appPairIcon);
//最后调用launchSplitTasks进行两个task的启动
mSplitSelectStateController.launchSplitTasks(
AppPairsController.convertRankToSnapPosition(app1.rank), callback);
}
);
}
再看看最核心launchSplitTasks方法
publicvoidlaunchTasks(@Nullable Consumer<Boolean> callback, boolean freezeTaskList,
@PersistentSnapPosition int snapPosition, @Nullable InstanceId shellInstanceId){
SplitSelectDataHolder.SplitLaunchData launchData =
mSplitSelectDataHolder.getSplitLaunchData();
int firstTaskId = launchData.getInitialTaskId();
int secondTaskId = launchData.getSecondTaskId();
ShortcutInfo firstShortcut = launchData.getInitialShortcut();
ShortcutInfo secondShortcut = launchData.getSecondShortcut();
PendingIntent firstPI = launchData.getInitialPendingIntent();
PendingIntent secondPI = launchData.getSecondPendingIntent();
Intent widgetIntent = launchData.getWidgetSecondIntent();
int firstUserId = launchData.getInitialUserId();
int secondUserId = launchData.getSecondUserId();
int initialStagePosition = launchData.getInitialStagePosition();
//根据上面的数据情况，识别不同的LaunchType然后调用不同的start接口
switch (launchData.getSplitLaunchType()) {
case SPLIT_TASK_TASK ->
//2个都有taskId类型情况
mSystemUiProxy.startTasks(firstTaskId, optionsBundle, secondTaskId,
null /* options2 */, initialStagePosition, snapPosition,
remoteTransition, shellInstanceId);
case SPLIT_TASK_PENDINGINTENT ->
mSystemUiProxy.startIntentAndTask(secondPI, secondUserId, optionsBundle,
firstTaskId, extrasBundle, initialStagePosition, snapPosition,
remoteTransition, shellInstanceId);
case SPLIT_TASK_SHORTCUT ->
mSystemUiProxy.startShortcutAndTask(secondShortcut, optionsBundle,
firstTaskId, null /*options2*/, initialStagePosition, snapPosition,
remoteTransition, shellInstanceId);
case SPLIT_PENDINGINTENT_TASK ->
mSystemUiProxy.startIntentAndTask(firstPI, firstUserId, optionsBundle,
secondTaskId, null /*options2*/, initialStagePosition, snapPosition,
remoteTransition, shellInstanceId);
case SPLIT_PENDINGINTENT_PENDINGINTENT ->
//2个都没有taskId类型情况
mSystemUiProxy.startIntents(firstPI, firstUserId, firstShortcut,
optionsBundle, secondPI, secondUserId, secondShortcut, extrasBundle,
initialStagePosition, snapPosition, remoteTransition,
shellInstanceId);
case SPLIT_SHORTCUT_TASK ->
mSystemUiProxy.startShortcutAndTask(firstShortcut, optionsBundle,
secondTaskId, null /*options2*/, initialStagePosition, snapPosition,
remoteTransition, shellInstanceId);
}
}
