安卓fonts.xml配置可变字

  • 2026-02-28 01:14:23
安卓fonts.xml配置可变字
在安卓中，系统使用fonts.xml进行字体配置（新版本安卓16使用font_fallback.xml进行字体配置）。可在网上自行搜索下fonts.xml文件。这里简单叙述下系统如何解析fonts.xml的。
首先对xml进行解析，读取关键字"family", 如果此时的Element有属性“name”，则我们称之为具名字体，反之称之为匿名字体。然后将所有的匿名字体作为一个集合，称之为fallback fonts。当系统使用字体时，优先使用默认字体(sans-serif)
或设置的具名字体，如果该字符没有在具名字体中查找到，则在fallback fonts中查找。当然查找也是有依据的，安卓的minikin实现了一个匹配字体的打分机制，通过各种条件进行匹配打分，例如lang、style等进行匹配打分，得分最高者就是最终使用的字体。
打分机制中的style，简单理解为细体、粗体，斜体等样式。在使用可变字体前，每种style都需要一个单独的ttf字体进行适配。当可变字体应用后，只需要每个style设置对应的可变轴值即可，如下图

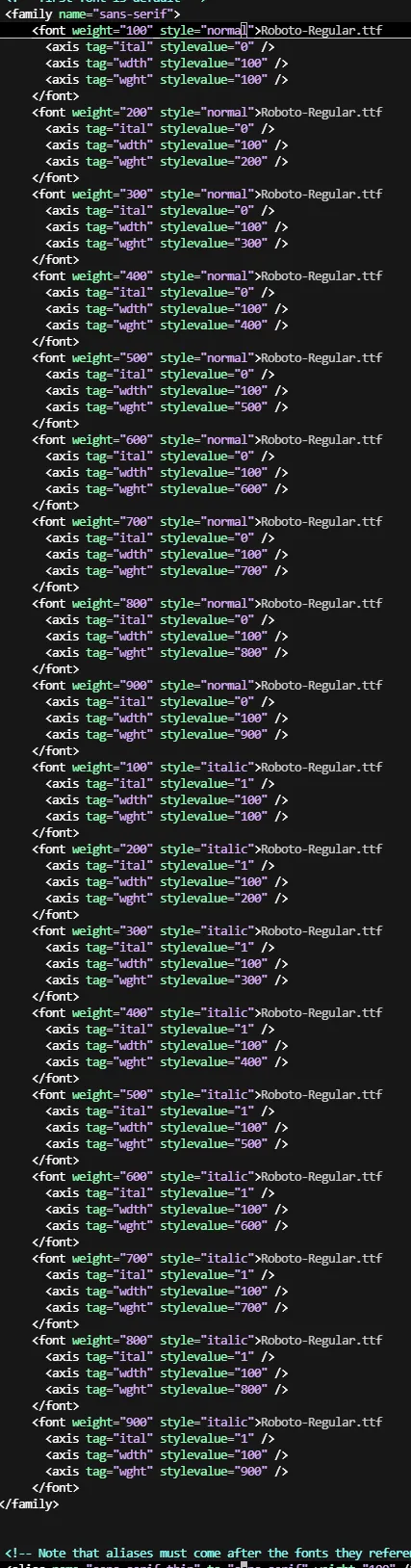

安卓系统使用<font> element中的 weight属性进行选取对应的条目。例如Regular时，会选择weight="400"的font条目。注意到此时'axis'的tag='wght'  stylevalue=400。一般的，这个值的具体数据不同字体可能不同。也就是说，当font中weight=“400”时，对应的可变字体xxx.ttf 对应的轴值 axis tag'=wght' stylevalue=???，其中'???'是该可变字适配Regular时的轴值，可能是400，也可能是423、451等任意值。图中由于Roboto-Regular.ttf设计的正好和安卓系统温和，因此都是400。
注意，以上只是针对fonts.xml的设置，由于新版本安卓优先使用font_fallback.xml，默认可变字体设置的轴值与系统一致，即与Roboto-Regular.ttf一样，font weight的值，与 axis='wght' stylevalue 的值相等。如果技术层面无法完全适配，则需要字体设计师对可变字体进行修改，增加master或者缩放轴值，以适配安卓系统。另一种方案就是放弃font_fallback.xml，继续使用传统的fonts.xml。
