前言
在上一篇文章中，我们完成了项目的初始化和基础架构搭建。本文将深入介绍 A2A 模式的核心接口开发，包括 JSON-RPC 2.0 协议的路由设计和实现。
JSON-RPC 2.0 协议回顾
JSON-RPC 是一种轻量级的远程过程调用协议，其请求格式如下：
{
"jsonrpc": "2.0",
"id": "request-123",
"method": "message/stream",
"params": {
"key": "value"
}
}
响应格式：
{
"jsonrpc": "2.0",
"id": "request-123",
"result": {
"data": "response data"
}
}

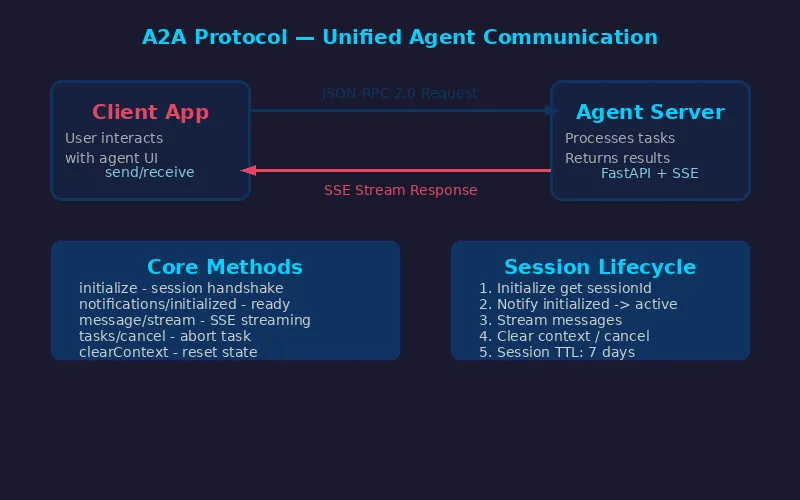

统一端点设计
A2A 协议采用统一端点设计，所有 RPC 方法都通过 /agent/message 端点处理：
POST /agent/message
Headers:
Content-Type: application/json
agent-session-id: <session-id>
完整的路由实现
1. 消息分发器
# routes/agent_routes.py
from fastapi import APIRouter, Request, Header
from fastapi.responses import JSONResponse, StreamingResponse
import uuid
import json
from typing import Optional, Dict, Any
router = APIRouter(prefix="/agent", tags=["agent"])
# 共享状态存储
agent_sessions: Dict[str, Dict[str, Any]] = {}
conversation_contexts: Dict[str, list] = {}
task_states: Dict[str, Dict[str, Any]] = {}
@router.post("/message")
async def handle_agent_message(
request: Request,
agent_session_id: Optional[str] = Header(None, alias="agent-session-id"),
x_request_id: Optional[str] = Header(None, alias="X-Request-ID"),
):
"""统一的 Agent 消息处理接口"""
request_id = x_request_id or str(uuid.uuid4())
# 解析请求体
try:
body = await request.json()
except json.JSONDecodeError:
return JSONResponse(
status_code=400,
content={"jsonrpc": "2.0", "id": "unknown", "error": {"code": 400, "message": "Invalid JSON"}}
)
jsonrpc_request = JsonRpcRequest(**body)
method = jsonrpc_request.method
# 路由分发
if method == "initialize":
return await handle_initialize(jsonrpc_request, request_id)
elif method == "notifications/initialized":
return await handle_initialized(jsonrpc_request, agent_session_id, request_id)
elif method == "message/stream":
return await handle_message_stream(jsonrpc_request, agent_session_id, request_id)
elif method == "tasks/cancel":
return await handle_tasks_cancel(jsonrpc_request, agent_session_id, request_id)
elif method == "clearContext":
return await handle_clear_context(jsonrpc_request, agent_session_id, request_id)
else:
return JSONResponse(
status_code=400,
content=JsonRpcResponse(
jsonrpc="2.0",
id=jsonrpc_request.id,
error={"code": -32601, "message": f"Method not found: {method}"}
).model_dump()
)
2. Initialize 方法
初始化会话，获取 agentSessionId：
async def handle_initialize(
request: JsonRpcRequest,
request_id: str,
) -> JSONResponse:
"""处理 initialize 方法"""
from datetime import datetime, timedelta
session_id = uuid.uuid4().hex
session_ttl = 7 * 24 * 60 * 60 # 7 天
# 存储会话信息
agent_sessions[session_id] = {
"created_at": datetime.utcnow(),
"expires_at": datetime.utcnow() + timedelta(seconds=session_ttl),
"status": "initialized",
}
response = JsonRpcResponse(
jsonrpc="2.0",
id=request.id,
result={
"version": "1.0",
"agentSessionId": session_id,
"agentSessionTtl": session_ttl,
}
)
return JSONResponse(content=response.model_dump())
3. Notifications/Initialized 方法
通知服务器初始化完成：
async def handle_initialized(
request: JsonRpcRequest,
agent_session_id: Optional[str],
request_id: str,
) -> JSONResponse:
"""处理 notifications/initialized 方法"""
if not agent_session_id or agent_session_id not in agent_sessions:
return JSONResponse(
status_code=401,
content={"error": "Invalid session ID"}
)
# 更新会话状态为 active
agent_sessions[agent_session_id]["status"] = "active"
return JSONResponse(content={})
4. Message/Stream 方法
核心的流式消息处理方法，支持 SSE 输出：
from fastapi.responses import StreamingResponse
import asyncio
async def handle_message_stream(
request: JsonRpcRequest,
agent_session_id: Optional[str],
request_id: str,
) -> StreamingResponse:
"""处理 message/stream 方法，支持 SSE 流式输出"""
params = request.params or {}
task_id = params.get("id", str(uuid.uuid4()))
session_id = params.get("sessionId", str(uuid.uuid4()))
message = params.get("message", {})
# 提取用户消息文本
user_text = get_text_from_parts(message.get("parts", []))
# 存储任务状态
task_states[task_id] = {
"sessionId": session_id,
"status": "working",
}
async def generate_sse():
"""SSE 流式生成器"""
try:
# 步骤 1: 发送 submitted 状态
yield create_sse_event({
"taskId": task_id,
"kind": "status-update",
"status": {"state": "submitted"}
})
# 步骤 2: 处理用户请求（调用大模型）
async for chunk in process_user_request(user_text, session_id):
yield create_sse_event(chunk)
# 步骤 3: 发送完成状态
yield create_sse_event({
"taskId": task_id,
"kind": "status-update",
"final": True,
"status": {"state": "completed"}
})
except Exception as e:
yield create_sse_event({
"taskId": task_id,
"kind": "status-update",
"final": True,
"status": {"state": "failed"},
"error": str(e)
})
return StreamingResponse(
generate_sse(),
media_type="text/event-stream",
headers={
"Cache-Control": "no-cache",
"Connection": "keep-alive",
"X-Accel-Buffering": "no",
}
)
def get_text_from_parts(parts: list) -> str:
"""从 Message Parts 中提取文本内容"""
texts = []
for part in parts:
if part.get("kind") == "text" and part.get("text"):
texts.append(part.get("text"))
return "\n".join(texts)
def create_sse_event(data: dict) -> str:
"""创建 SSE 事件字符串"""
event = {
"jsonrpc": "2.0",
"id": task_id,
"result": data,
"error": {"code": 0, "message": "success"}
}
return f"data: {json.dumps(event, ensure_ascii=False)}\n\n"
5. Tasks/Cancel 方法
取消正在执行的任务：
async def handle_tasks_cancel(
request: JsonRpcRequest,
agent_session_id: Optional[str],
request_id: str,
) -> JSONResponse:
"""处理 tasks/cancel 方法"""
params = request.params or {}
task_id = params.get("id", request.id)
if task_id in task_states:
task_states[task_id]["status"] = "canceled"
return JSONResponse(
content=JsonRpcResponse(
jsonrpc="2.0",
id=request.id,
result={
"id": task_id,
"status": {"state": "canceled"}
}
).model_dump()
)
6. ClearContext 方法
清理对话上下文：
async def handle_clear_context(
request: JsonRpcRequest,
agent_session_id: Optional[str],
request_id: str,
) -> JSONResponse:
"""处理 clearContext 方法"""
params = request.params or {}
session_id = params.get("sessionId", request.sessionId)
if session_id and session_id in conversation_contexts:
conversation_contexts[session_id] = []
return JSONResponse(
content=JsonRpcResponse(
jsonrpc="2.0",
id=request.id,
result={"status": {"state": "cleared"}}
).model_dump()
)
接口调用示例
初始化会话
curl -X POST http://localhost:8080/agent/message \
-H "Content-Type: application/json" \
-d '{
"jsonrpc": "2.0",
"id": 1,
"method": "initialize"
}'
响应：
{
"jsonrpc": "2.0",
"id": 1,
"result": {
"agentSessionId": "8f01f3d172cd4396a0e535ae8aec6687",
"agentSessionTtl": 604800
}
}
发送流式消息
curl -X POST http://localhost:8080/agent/message \
-H "Content-Type: application/json" \
-H "agent-session-id: 8f01f3d172cd4396a0e535ae8aec6687" \
-d '{
"jsonrpc": "2.0",
"id": 2,
"method": "message/stream",
"params": {
"id": "task-001",
"sessionId": "session-001",
"message": {
"role": "user",
"parts": [{
"kind": "text",
"text": "你好，请帮我介绍一下你自己"
}]
}
}
}'
小结
本文介绍了 A2A 模式的核心接口开发：
- 统一端点设计：所有 RPC 方法通过
/agent/message 路由 - JSON-RPC 2.0 协议：标准化的请求响应格式
- 会话管理：基于
agentSessionId 的状态跟踪
下一篇文章将详细介绍 A2A 模式的消息规范。
