鸿蒙南向带屏应用替换文字显示过程记录

  • 2026-08-12 22:04:53
鸿蒙南向带屏应用替换文字显示过程记录
摘要：本文记录通晓开发板替换界面显示文字的过程，结合前文的图片替换鸿蒙南向带屏应用换logo图片的过程记录，可以共同完成带屏设备的UI展示，让南向设备可以在设备侧输出设备状态，传感器信息等内容，方便近端维护。
文字显示和图片显示类似，分为两部分：获取文字的十六进制数组，设置需要显示的文字。
一、准备文字的数组：

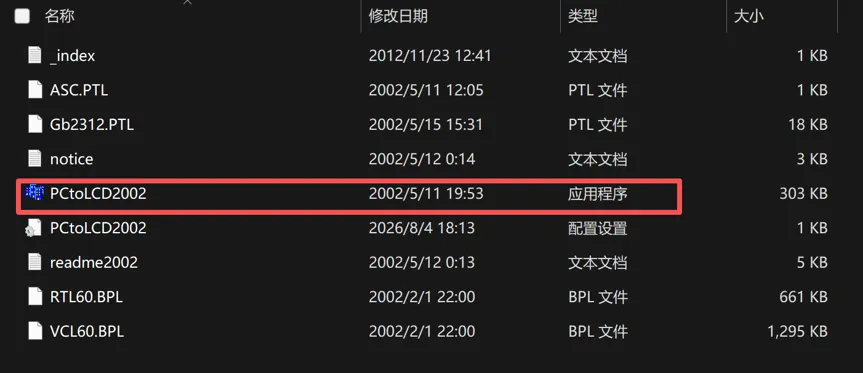

1. 打开PCtoLCD2002（这是嵌入式常用字模软件，给单片机、STM32、Arduino 等嵌入式设备的 LCD/OLED/TFT 液晶屏幕做字模 / 图片点阵提取。）

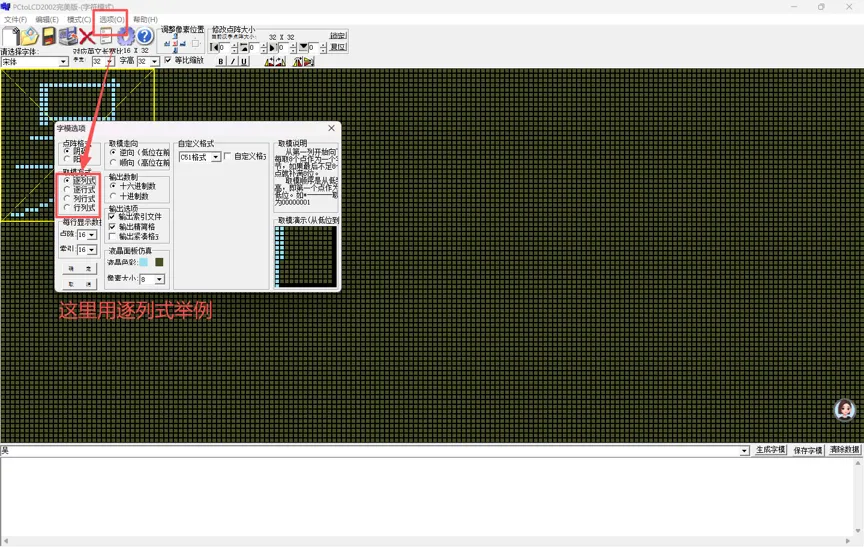

   2. 打开后，在输入框内输入需要的字，这里用“吴”字举例子，根据自己所需选择字体方向（此处用默认的逐列式）：

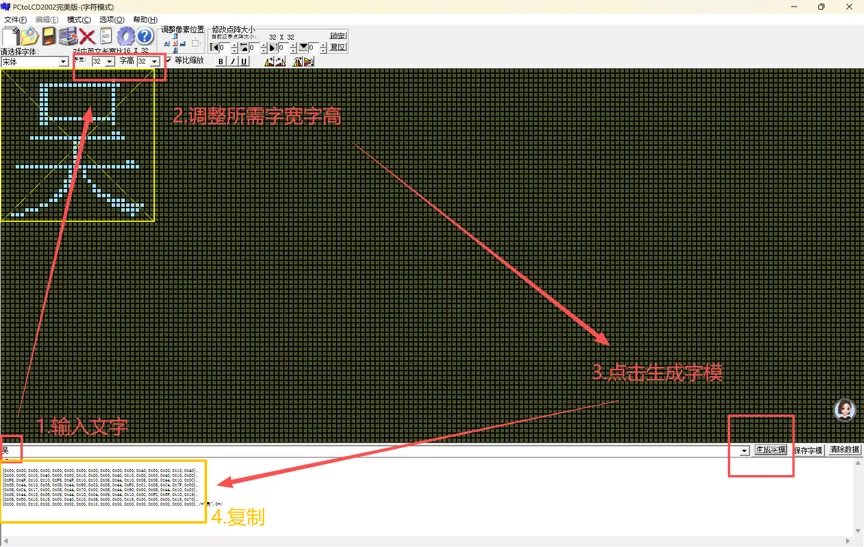

设置字体，尺寸等属性后，点击生成字模，下方会生成数组。
默认生成的数组，和代码中的还有些格式上的区别，将在第二步再介绍。
二、修改代码：

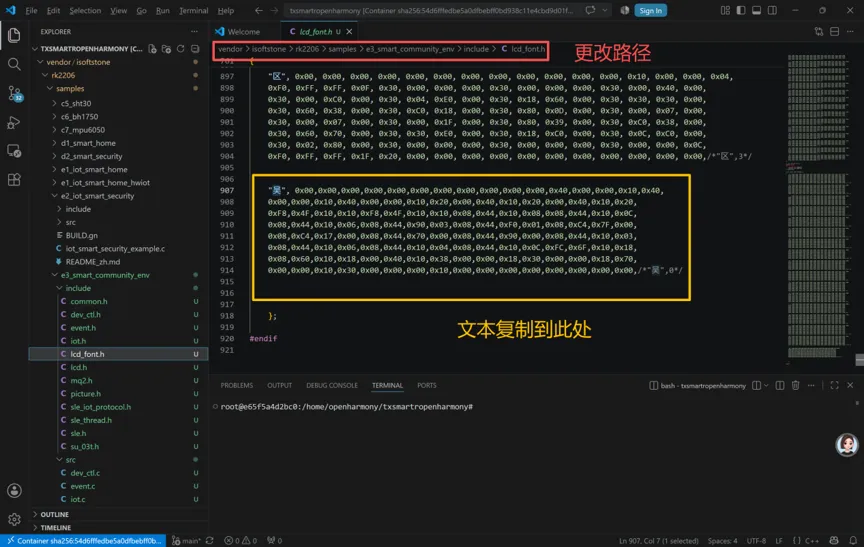

1. 首先修改lcd_font.h中的字库，添加刚才生成的数组，注意修改格式，去掉大括号，改成和原有字模相同的格式并保存。

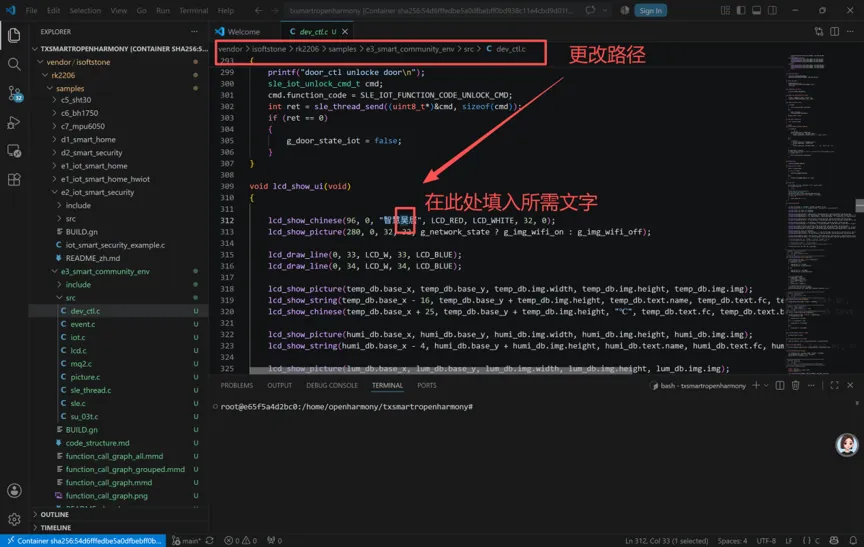

2. 修改dev_ctl.c文件，修改我们需要替换或者展示的文字内容，本例中我们修改“智慧家居”为“智慧吴居”并保存。
到此已经完成了文字的替换和修改。
三、构建镜像和烧录

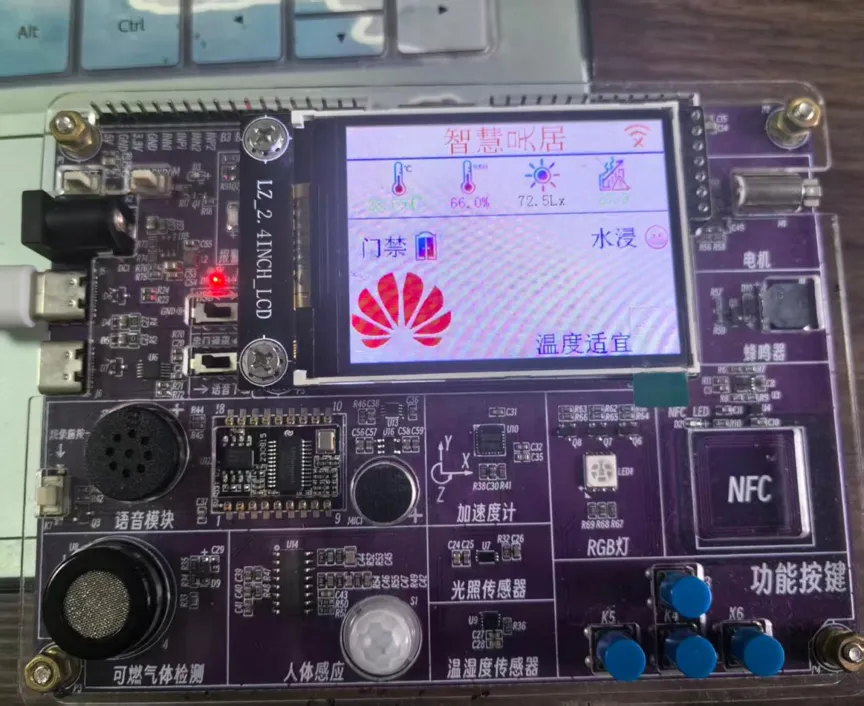

前文已经介绍过构建和烧录的过程，本文就不再赘述，烧录后的结果如下图所示：
我们可以看到“吴”字是躺着的，这是为什么呢？
TIP：这是因为我们选择了“逐列生成”，所以生成的字模就是倒着的，思考下为什么？

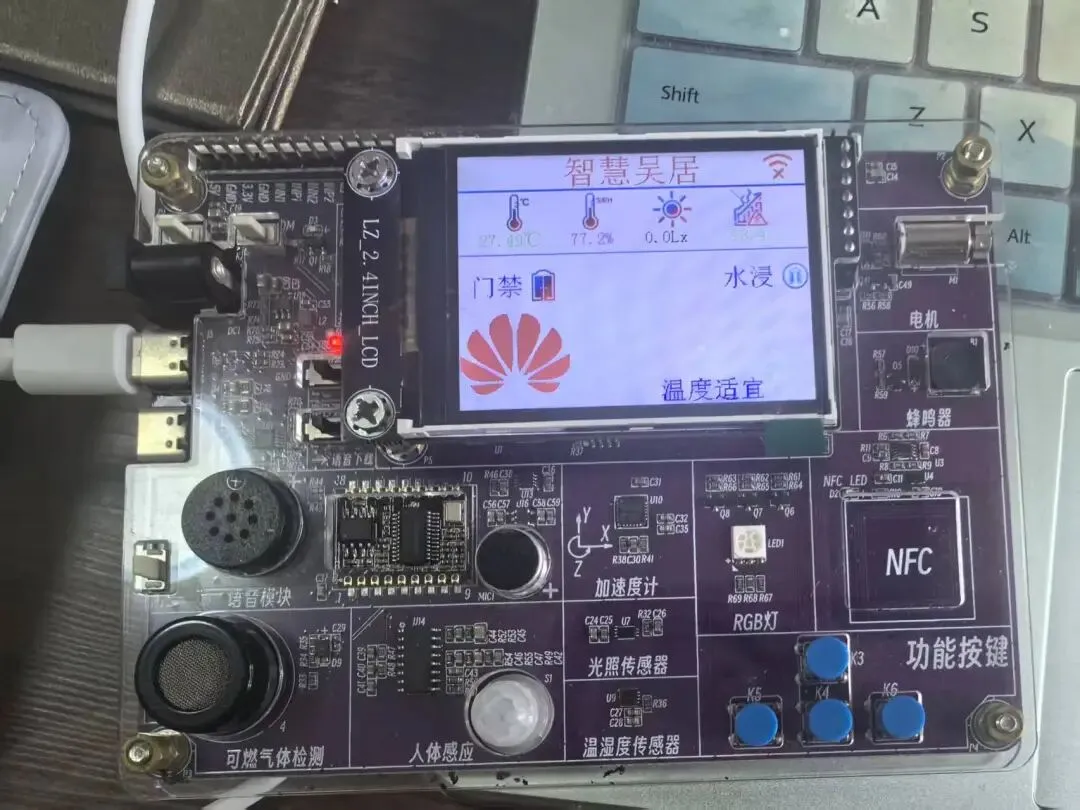

我们修改参数为“逐行生成”，重新再进行构建烧录，就会发现“吴”字站起来了，如下图：
致谢：本文实验过程及截图拍照由小吴同学操作，在此表示感谢~~
